Components [06/2018 - ]

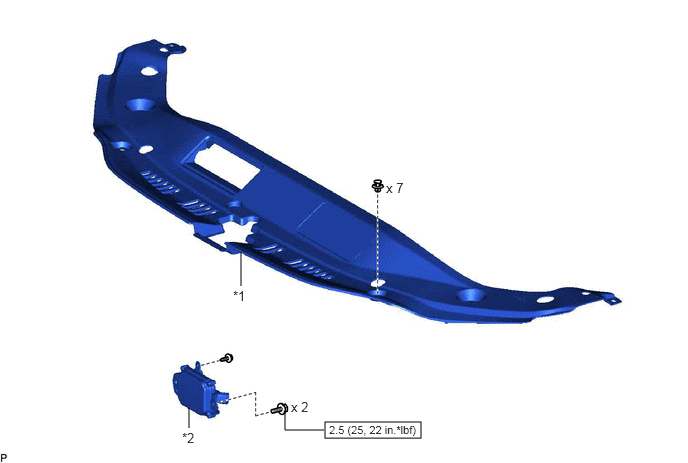

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [06/2018 - ]
GTY831521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
