Components [06/2018 - ]

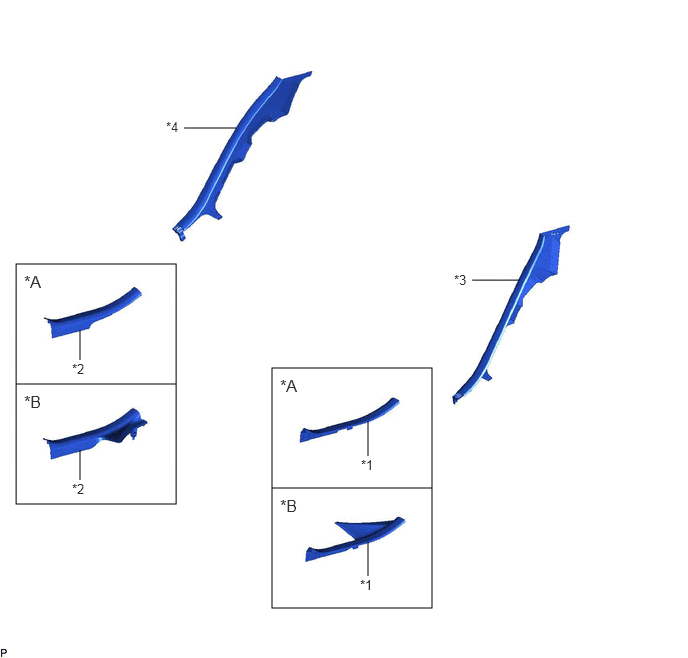

Fig 1: Child Restraint Seat Tether Anchor Replacement Components [06/2018 - ](1 Of 2)
GTY833096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for HV Model *B for Gasoline Model
*1 REAR DOOR SCUFF PLATE LH *2 REAR DOOR SCUFF PLATE RH
*3 REAR SEAT SIDE GARNISH LH *4 REAR SEAT SIDE GARNISH RH

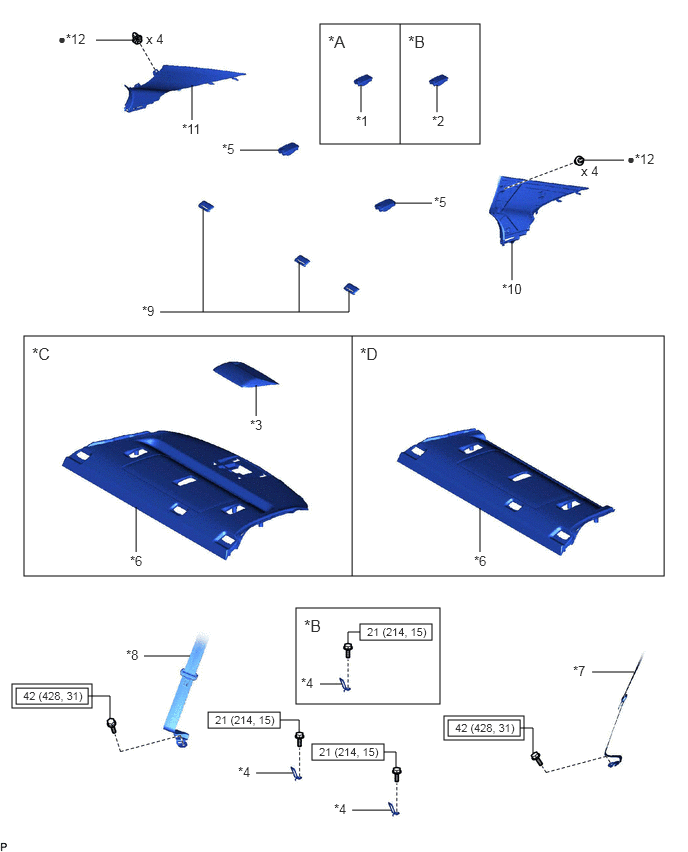

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications [06/2018 - ](2 Of 2)
GTY816974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Center Bracket *B w/ Center Bracket
*C w/o Rear Sunshade *D w/ Rear Sunshade
*1 CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER *2 CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER
*3 CENTER STOP LIGHT SET *4 CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
*5 CHILD RESTRAINT SEAT TETHER ANCHOR COVER *6 PACKAGE TRAY TRIM PANEL ASSEMBLY
*7 REAR SEAT OUTER BELT ASSEMBLY LH *8 REAR SEAT OUTER BELT ASSEMBLY RH
*9 REAR SEAT SHOULDER BELT COVER *10 ROOF SIDE INNER GARNISH ASSEMBLY LH
*11 ROOF SIDE INNER GARNISH ASSEMBLY RH *12 CLIP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -
