Removal [10/2015 - ]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  3. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  4. REMOVE LOWER INSTRUMENT FINISH PANEL SUB

    Refer to PROCEDURE - Step 10 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 03/2018] , or refer to PROCEDURE - Step 10 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  5. REMOVE POWER SWITCH

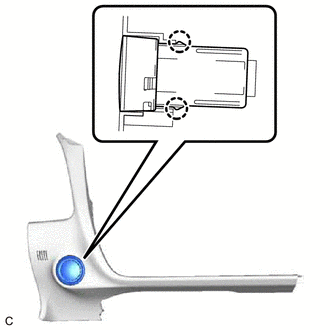

    1. Disengage the 2 claws and remove the power switch.
      GTY669760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
