Front Passenger Side Power Window Switch
>>
Components [09/2015 - ]
Components [09/2015 - ]

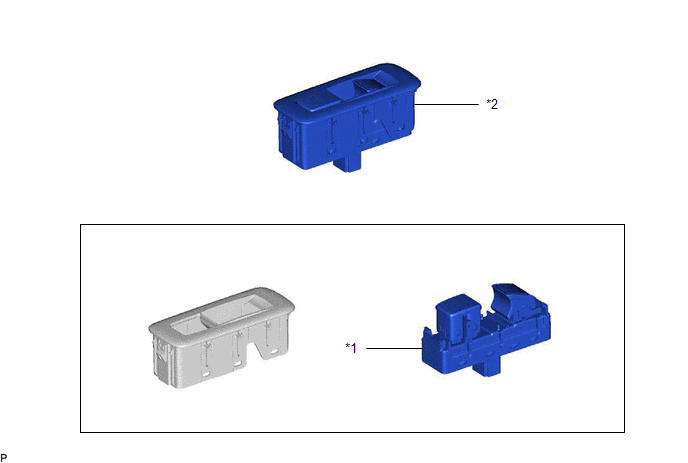

Fig 1: Front Passenger Side Power Window Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
POWER WINDOW REGULATOR SWITCH ASSEMBLY
*2
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
