Engine Coolant Temperature Sensor
>>
Components [09/2015 - ]
Components [09/2015 - ]

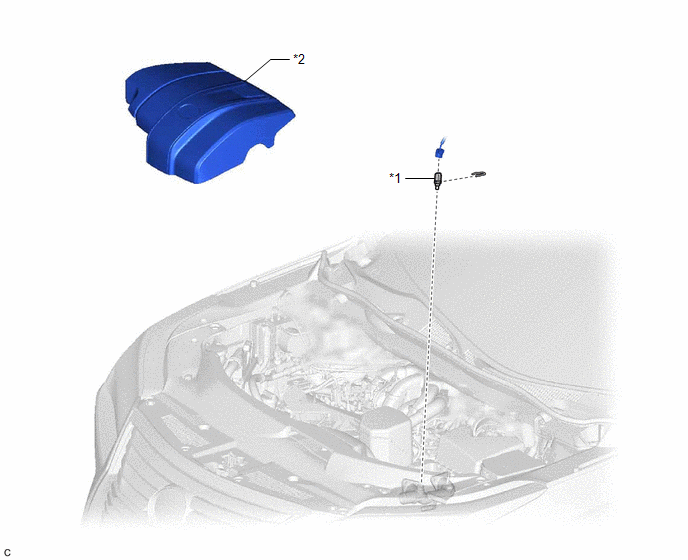

Fig 1: Engine Coolant Temperature Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ENGINE COOLANT TEMPERATURE SENSOR
*2
V-BANK COVER SUB-ASSEMBLY
