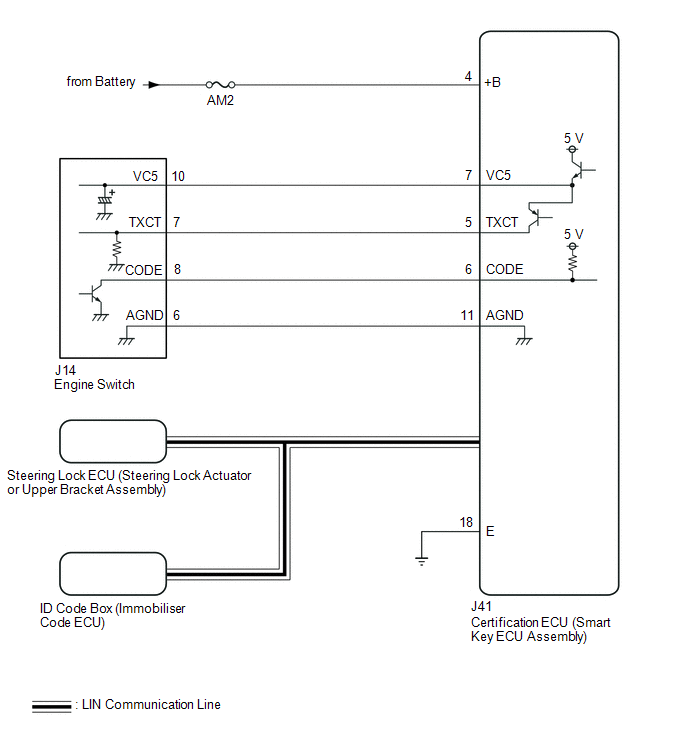

New Key cannot be Registered [09/2015 - ]: Wiring Diagram

GTY684251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
