Components [03/2019 - ]

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [03/2019 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER FLOOR COVER LH	*2	FRONT CENTER FLOOR COVER RH
*3	FRONT CENTER FLOOR BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

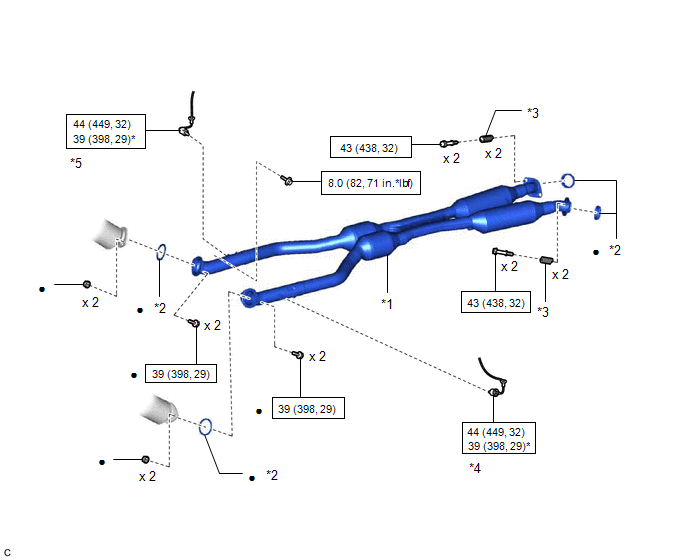

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications [03/2019 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	EXHAUST PIPE GASKET
*3	COMPRESSION SPRING	*4	HEATED OXYGEN SENSOR (for Bank 1)
*5	HEATED OXYGEN SENSOR (for Bank 2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

Fig 3: Exhaust Pipe Replacement Components [03/2019 - ] (3 Of 3)

*A	Type A	*B	Type B
*1	TAIL EXHAUST PIPE ASSEMBLY	*2	TAIL EXHAUST PIPE LH
*3	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*4	EXHAUST PIPE SUPPORT
•	Non-reusable part	-	-
