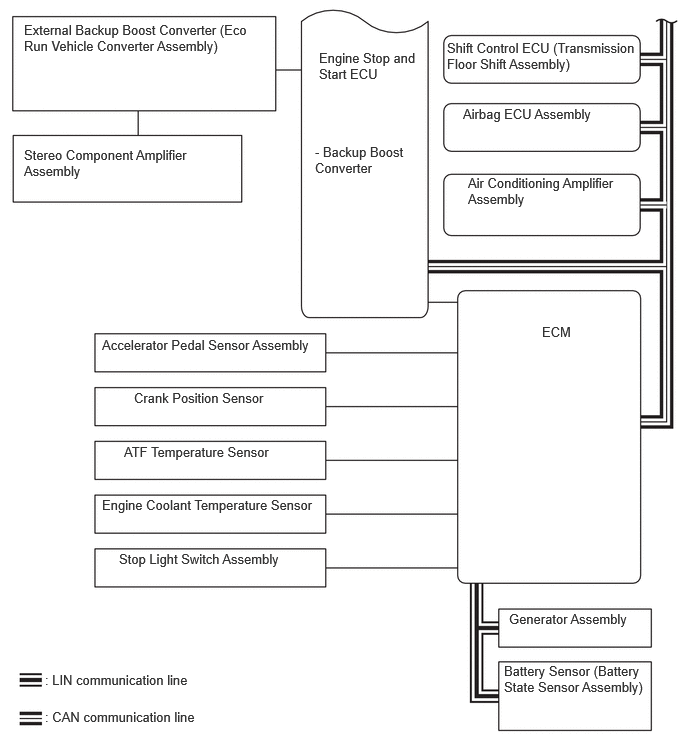

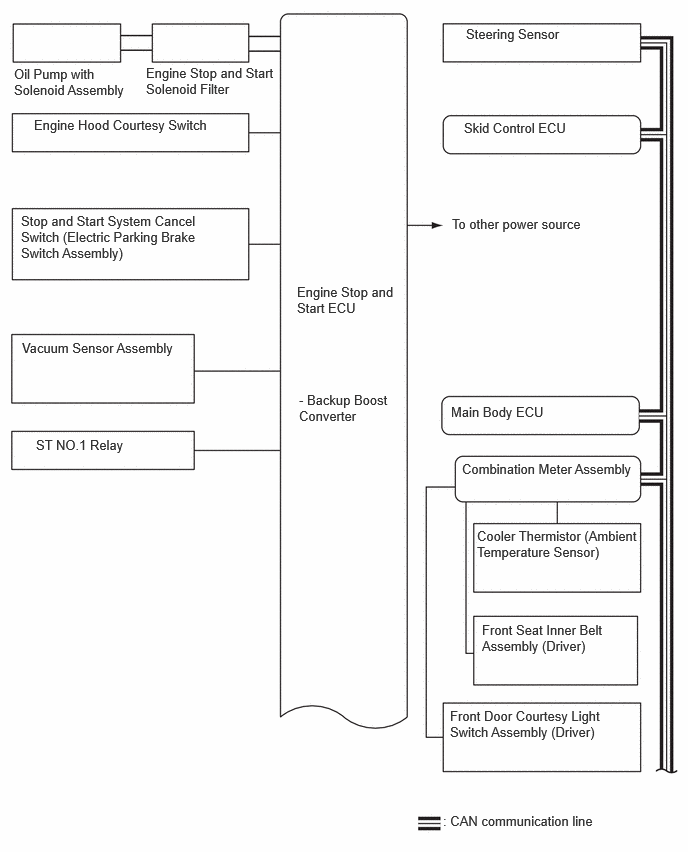

Home >> Lexus >> 2022 >> NX 250 FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Stop And Start System - Diagnostics - Introduction (1 Of 2) >> Stop And Start System >> System Diagram [11/2021 - ] >> System Diagram [11/2021 - ]
