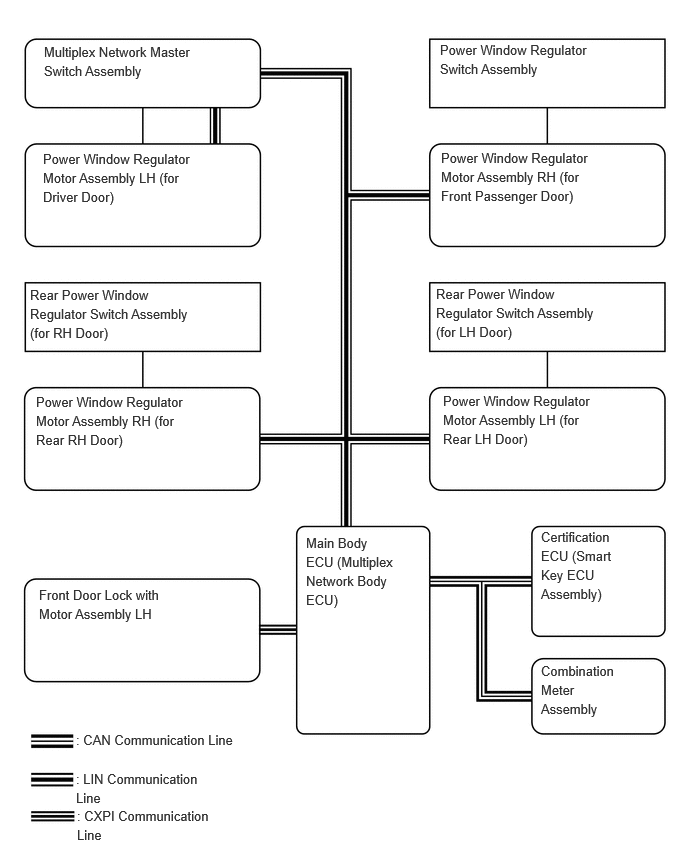

Home >> Lexus >> 2022 >> NX 250 AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics - Introduction >> Power Window Control System >> System Diagram [11/2021 - ] >> System Diagram [11/2021 - ]
