Components [12/2021 - ]

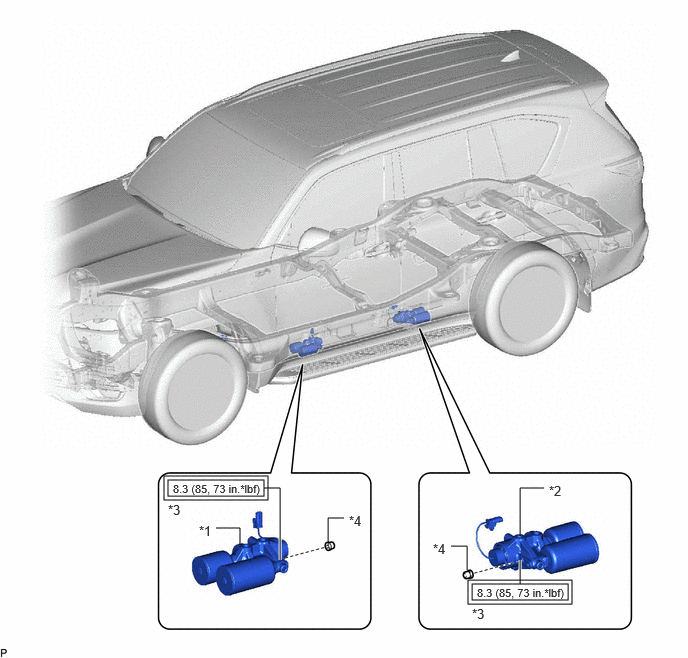

Fig 1: Active Height Control Fluid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SUSPENSION CONTROL ACCUMULATOR ASSEMBLY LH	*2	REAR SUSPENSION CONTROL ACCUMULATOR ASSEMBLY LH
*3	BLEEDER PLUG	*4	BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

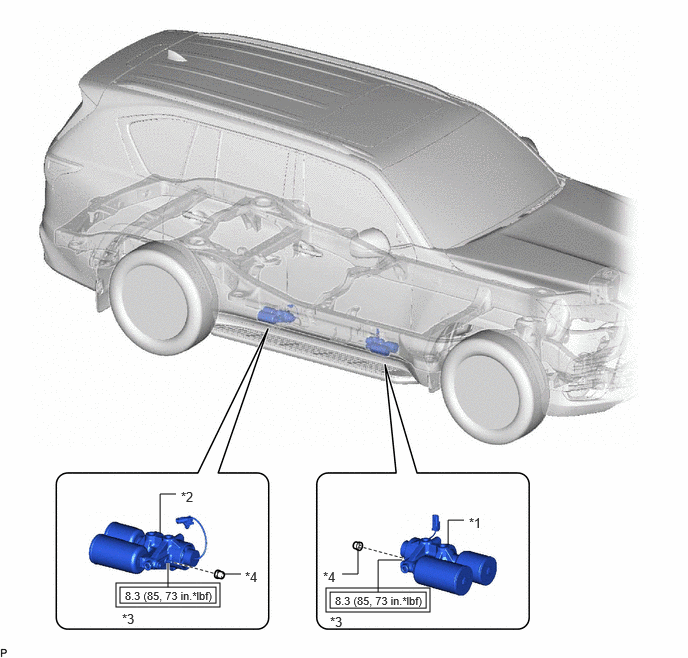

Fig 2: Active Height Control Fluid Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT SUSPENSION CONTROL ACCUMULATOR ASSEMBLY RH	*2	REAR SUSPENSION CONTROL ACCUMULATOR ASSEMBLY RH
*3	BLEEDER PLUG	*4	BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
