Installation [10/2020 - 10/2023]: Procedure

INSTALL REAR ACTIVE STABILIZER CONTROL ECU

Connect the rear active stabilizer control ECU connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

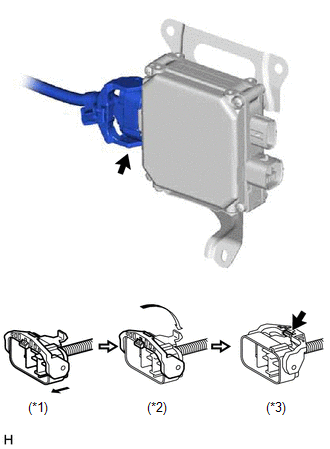

Connect the rear active stabilizer control ECU connector. (*1)
Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
Lock the lever's lock. (*3)

Install the rear active stabilizer control ECU with the 3 nuts.

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

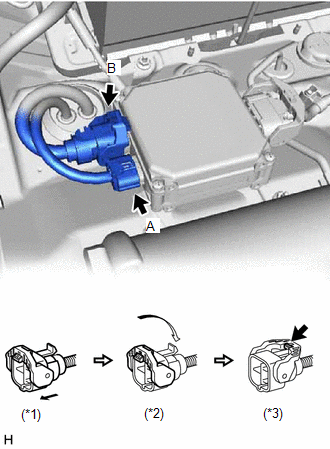

Connect the rear active stabilizer control actuator connector labeled A.

Connect the rear active stabilizer control actuator connector labeled B.
1. Connect the actuator connector. (*1)
2. Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
3. Lock the lever's lock. (*3)

INSTALL BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY
Refer to INSTALLATION [10/2020 - 10/2023]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [10/2020 - 10/2023]
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023]
