Components [01/2017 - ]

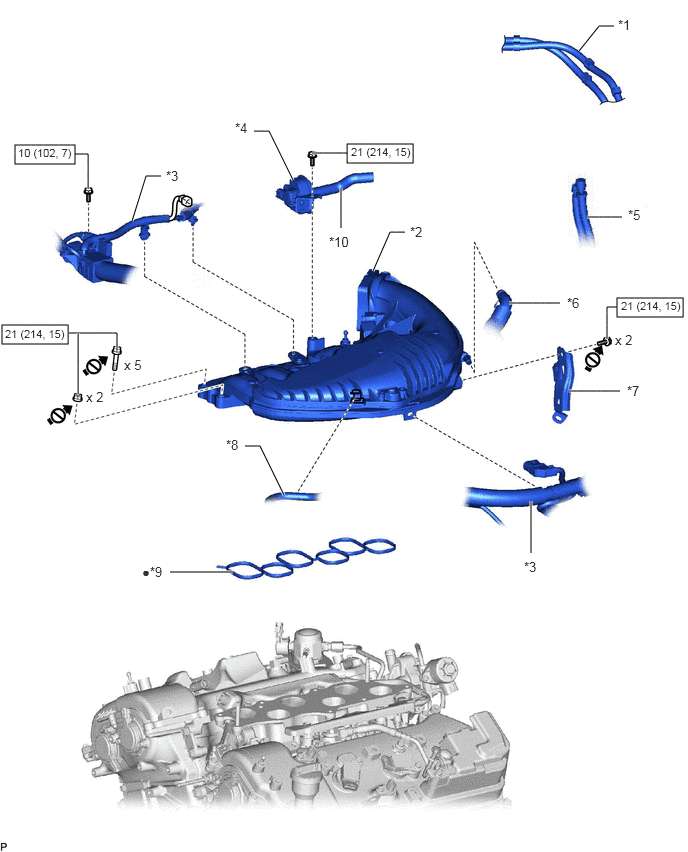

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 2)

GTY787295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	GENERATOR CABLE AND MOTOR CABLE	*2	INTAKE AIR SURGE TANK ASSEMBLY
*3	WIRE HARNESS	*4	PURGE VSV
*5	TRANSMISSION BREATHER ASSEMBLY	*6	PCV HOSE
*7	NO. 2 SURGE TANK STAY	*8	NO. 1 FUEL TUBE SUB-ASSEMBLY
*9	AIR SURGE TANK TO INTAKE MANIFOLD GASKET	*10	NO. 1 FUEL VAPOR FEED HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants to the threads parts	-	-

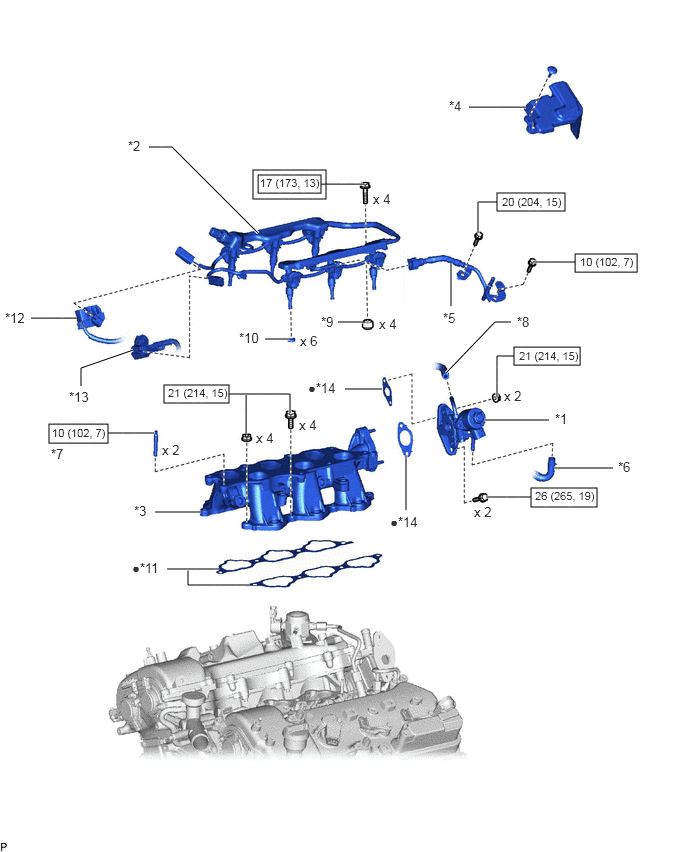

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 2)

GTY781070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	EGR VALVE ASSEMBLY	*2	FUEL DELIVERY PIPE SUB-ASSEMBLY
*3	FUEL TUBE SUB-ASSEMBLY	*4	INTAKE MANIFOLD
*5	NO. 1 ENGINE COVER SUB-ASSEMBLY	*6	NO. 15 WATER BY-PASS HOSE
*7	STUD BOLT	*8	WATER BY-PASS HOSE
*9	NO. 1 DELIVERY PIPE SPACER	*10	INJECTOR VIBRATION INSULATOR
*11	NO. 1 INTAKE MANIFOLD TO HEAD GASKET	*12	NO. 6 ENGINE WIRE
*13	NO. 7 ENGINE WIRE	*14	GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
•	Non-reusable part	-	-
