Door Lock System - Service Information
>>
Door Control Switch
>>
Components [06/2018 - ]
Components [06/2018 - ]

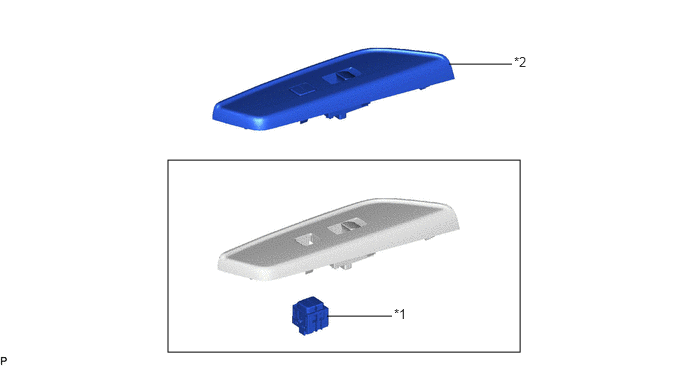

Fig 1: Door Control Switch Replacement Components [06/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DOOR CONTROL SWITCH ASSEMBLY
*2
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
