Components [06/2018 - ]

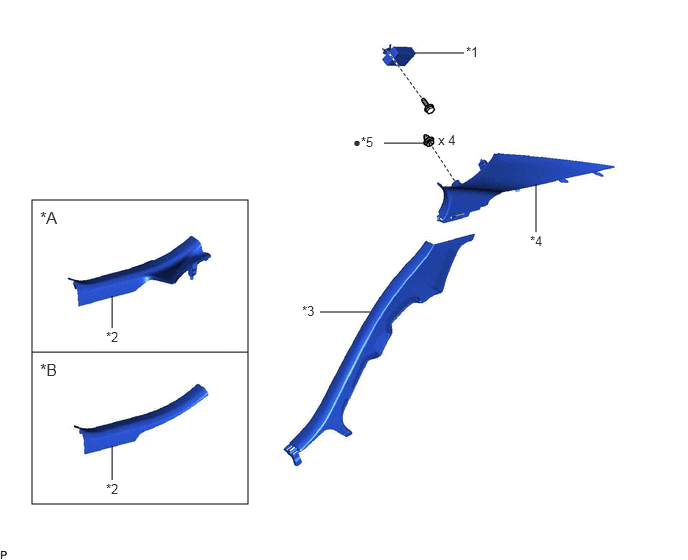

Fig 1: Door Control Receiver Replacement Components [06/2018 - ]
GTY790218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Gasoline Model *B for HV Model
*1 ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER *2 REAR DOOR SCUFF PLATE RH
*3 REAR SEAT SIDE GARNISH RH *4 ROOF SIDE INNER GARNISH ASSEMBLY RH
*5 CLIP - -
• Non-reusable part - -
