DTC B2284: Brake Signal Malfunction [06/2018 - 08/2020]: Wiring Diagram

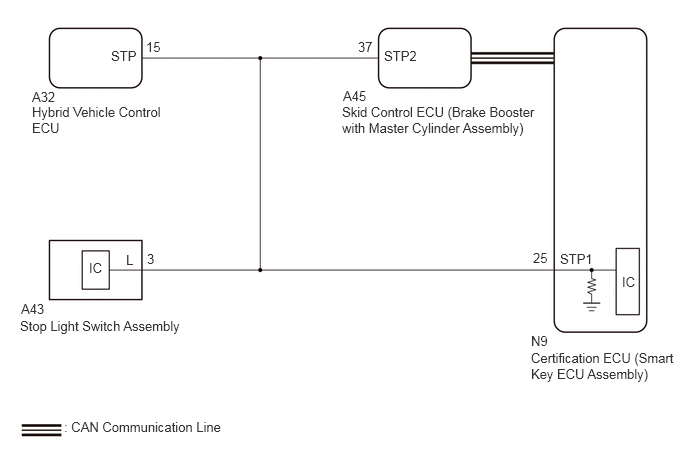

Fig 1: DTC B2284: Brake Signal Malfunction [06/2018 - 08/2020]

GTY808252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
