System Diagram [10/2018 - 07/2022]

WARNING: This page is about a different car, the 2022 Lexus UX 200, 2021 Lexus UX 200, 2020 Lexus UX 200, and 2019 Lexus UX 200. However, it is still accessible from the selected car via links, so may be relevant.

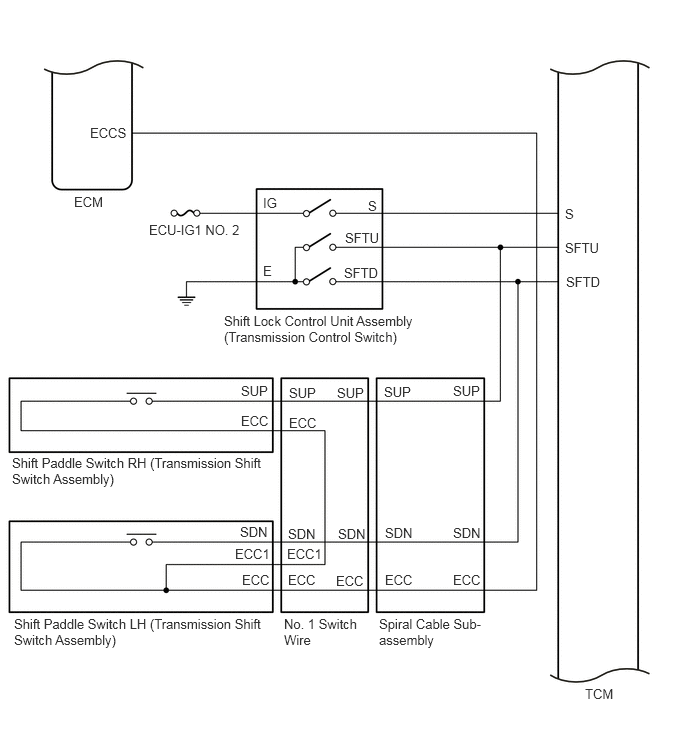

Fig 1: Continuously Variable Transaxle System Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

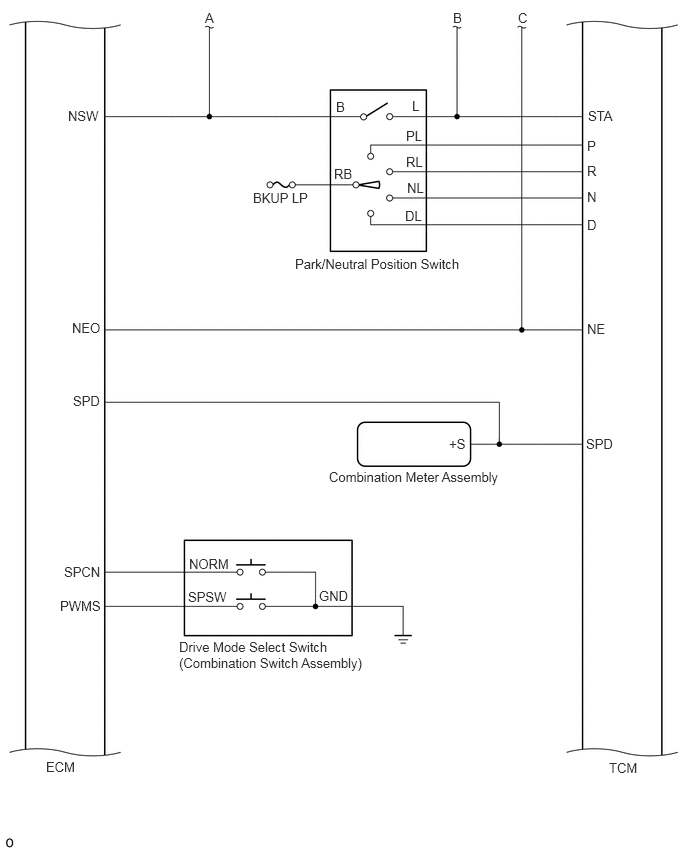

Fig 2: Continuously Variable Transaxle System Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

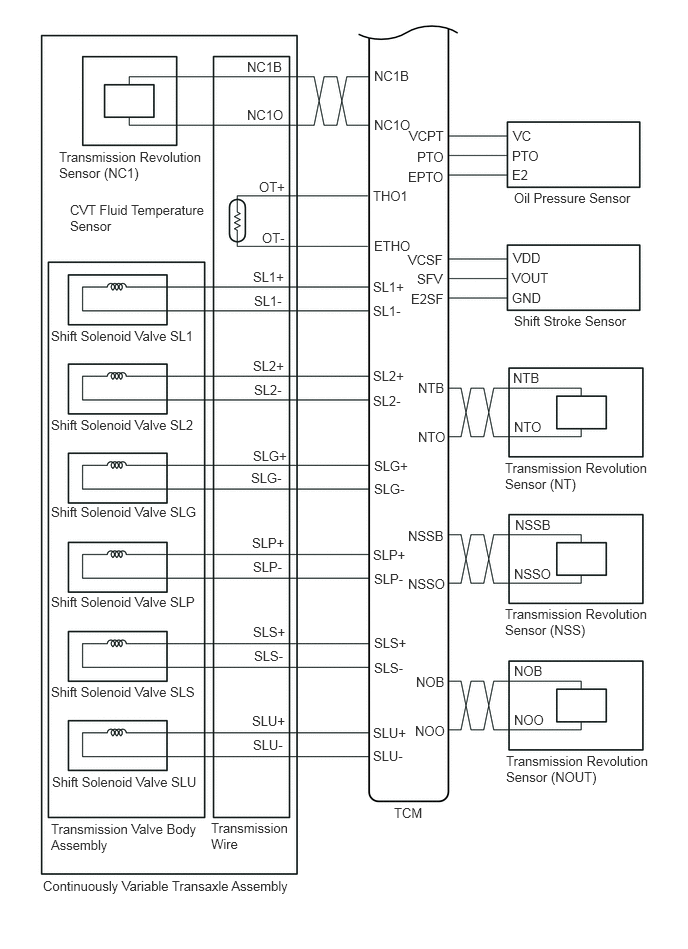

Fig 3: Continuously Variable Transaxle System Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

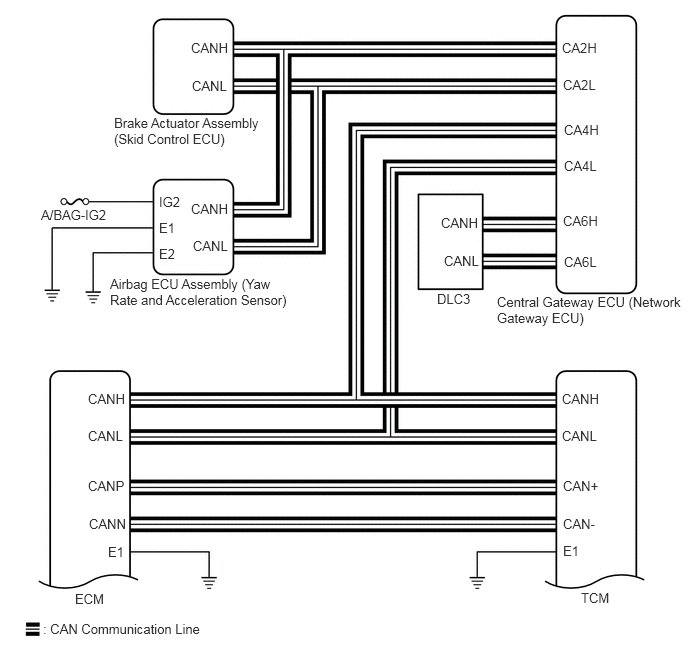

Fig 4: Continuously Variable Transaxle System Diagram (4 Of 5)

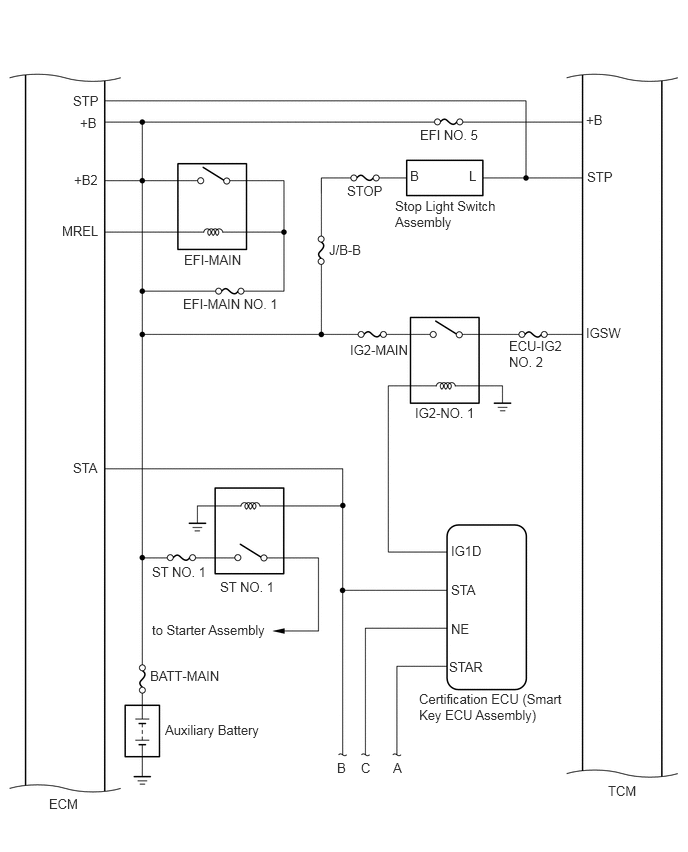

Fig 5: Continuously Variable Transaxle System Diagram (5 Of 5)
