Installation [10/2018 - 07/2022]: Procedure

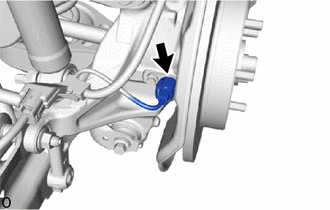

1. Install the rear skid control sensor to the rear axle carrier sub-assembly with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

2. Connect the skid control sensor connector to the skid control sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [10/2018 - ]

• for HV Model:

  Refer to TEST MODE PROCEDURE [10/2018 - ]

• for Gasoline Model:

  Refer to TEST MODE PROCEDURE [10/2018 - 07/2022]
