System Diagram [10/2018 - 08/2021]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, HV Model)

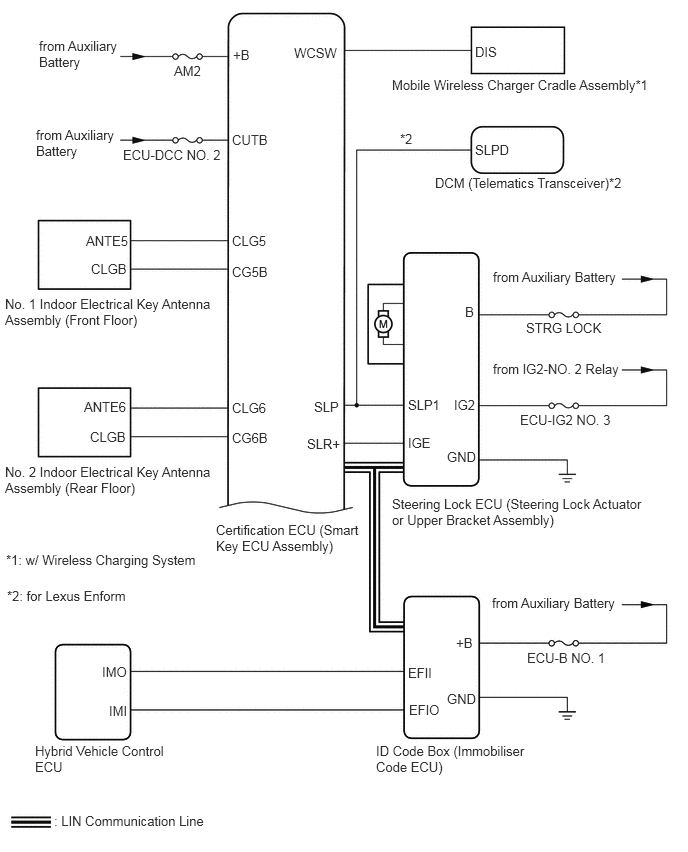

    GTY817792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

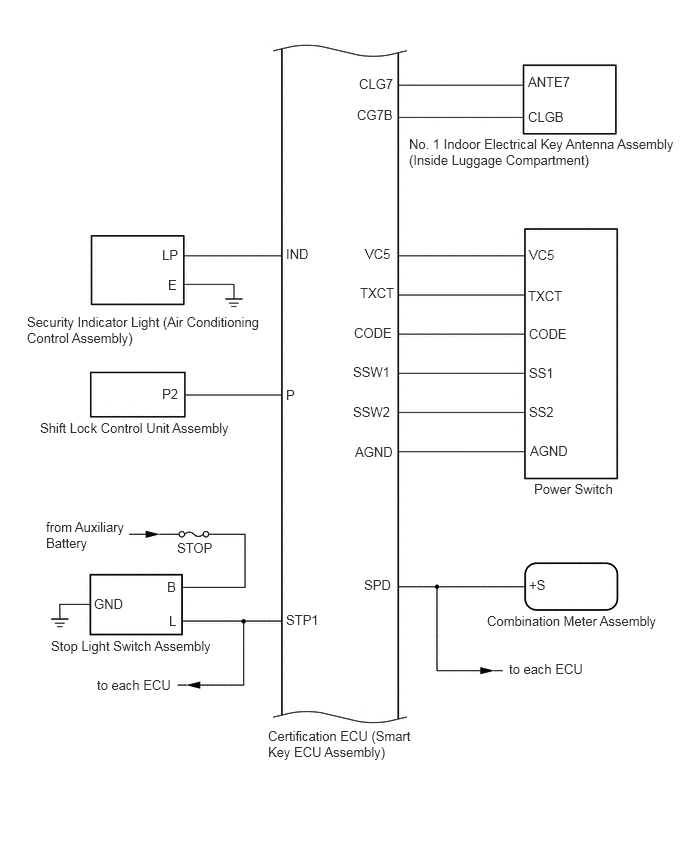

    GTY811557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

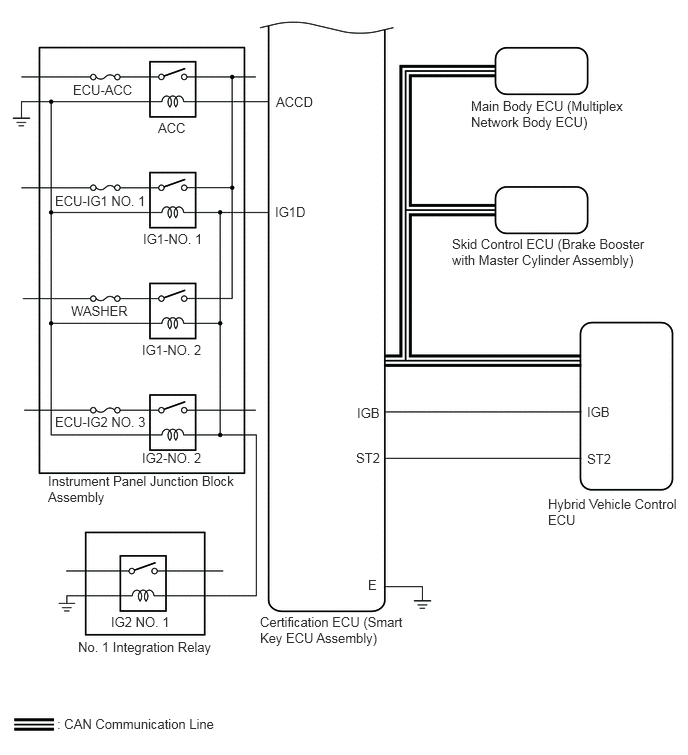

    GTY838260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, HV Model)

    Refer to SYSTEM DIAGRAM [10/2018 - 08/2021]
