System Diagram [10/2018 - 10/2020]

  1. FRONT WIPER AND WASHER SYSTEM

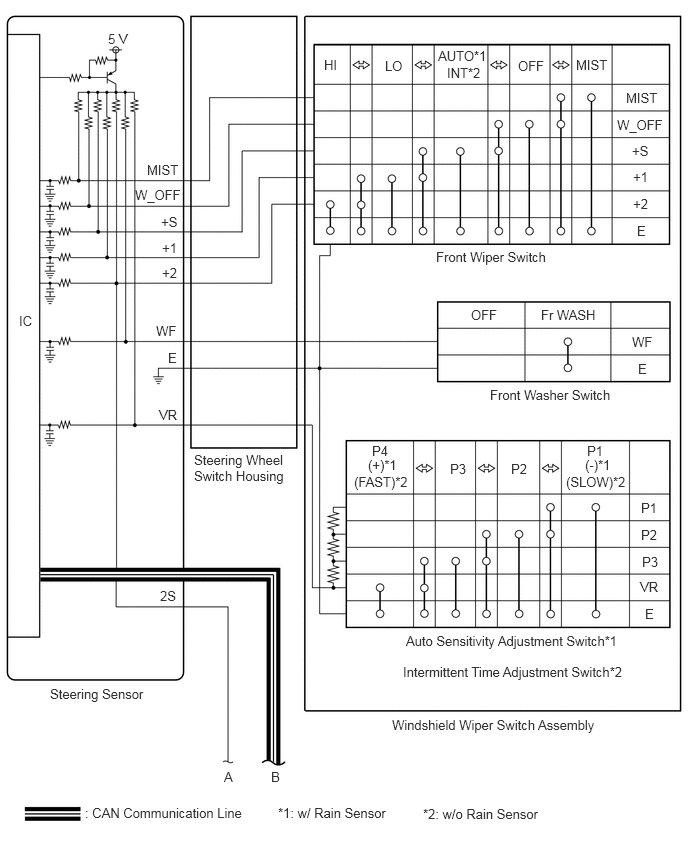

    GTY808169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

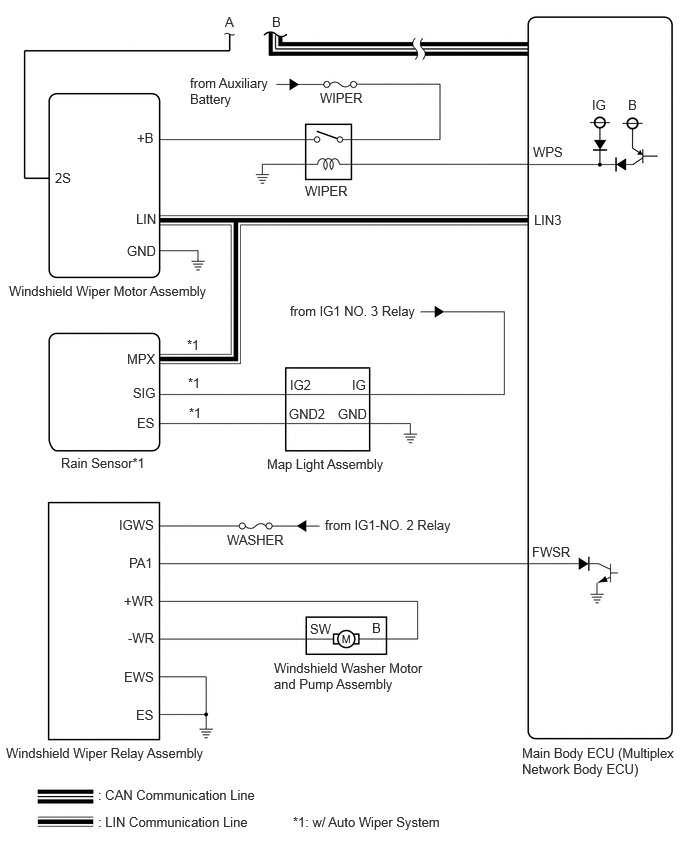

    GTY800679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REAR WIPER AND WASHER SYSTEM

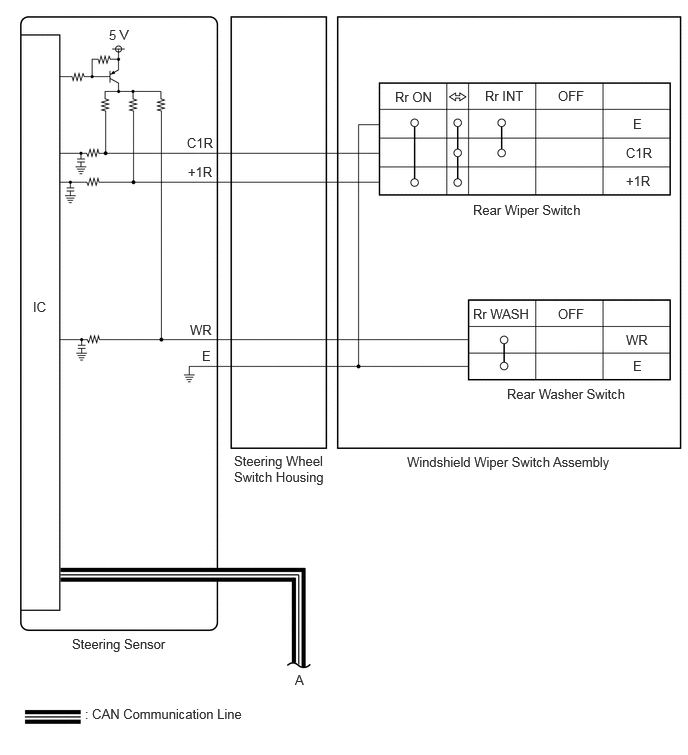

    GTY775938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

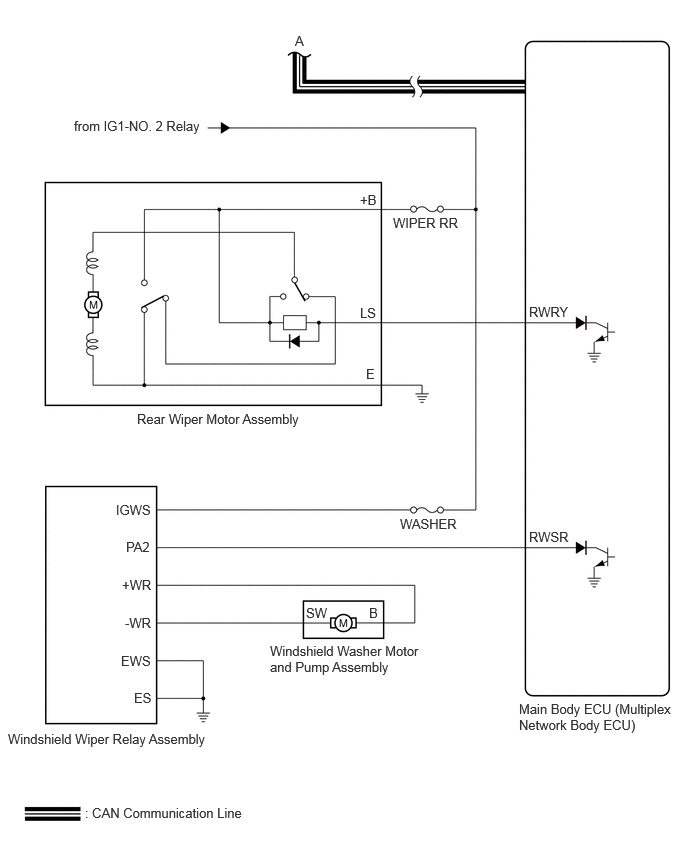

    GTY795421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)

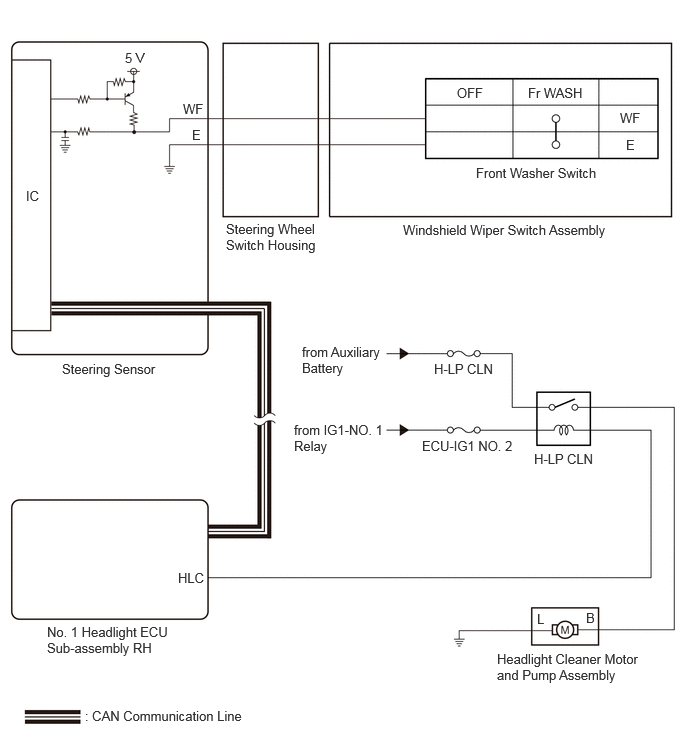

    GTY790476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. WASHER FLUID LEVEL WARNING SYSTEM
    GTY797408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
