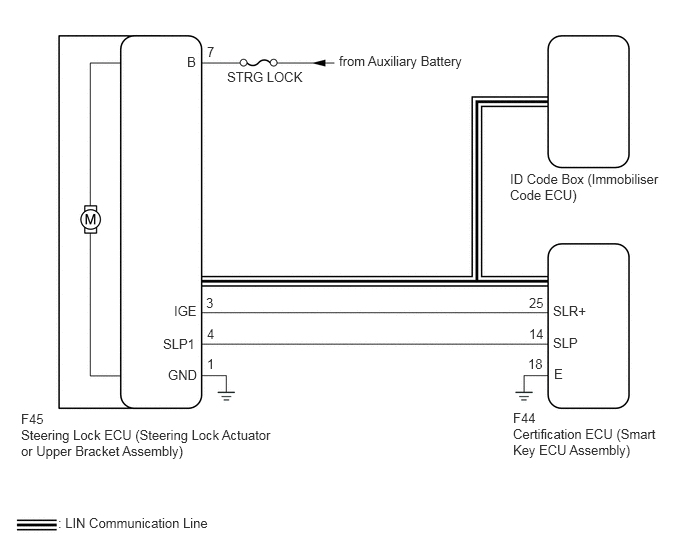

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [10/2018 - 07/2022]: Wiring Diagram

GTY807950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
