SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, HV Model)
>>
Power Source Mode does not Change to ON (IG and ACC) [10/2018 - 08/2021]
>>

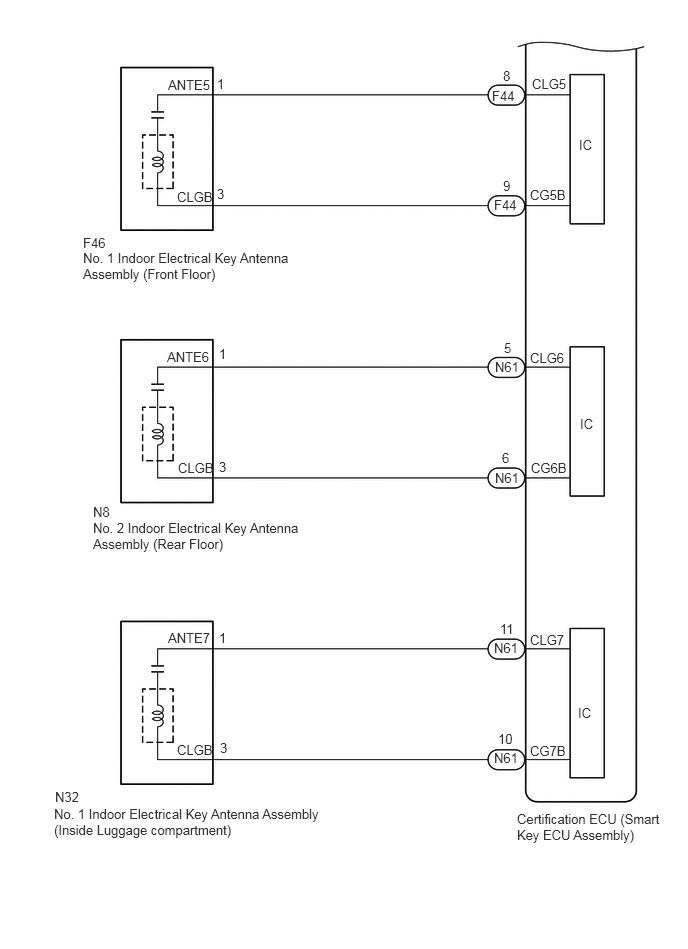

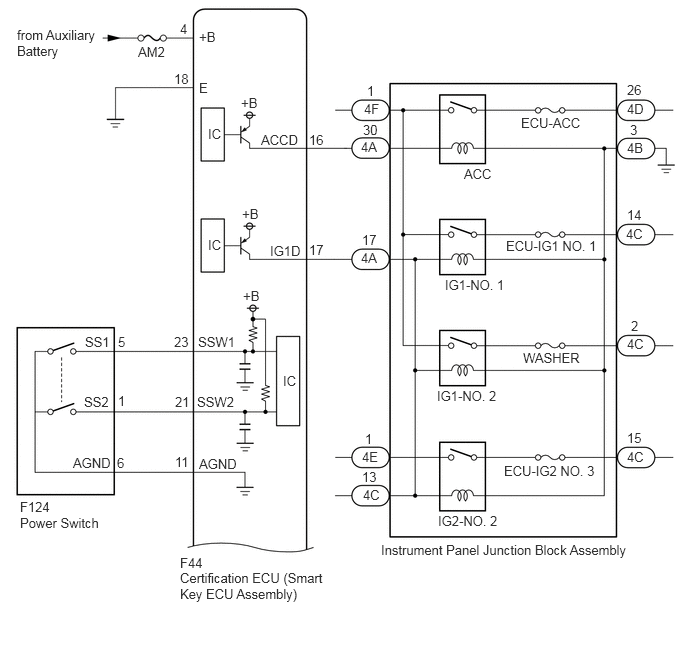

Wiring Diagram
Power Source Mode does not Change to ON (IG and ACC) [10/2018 - 08/2021]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
