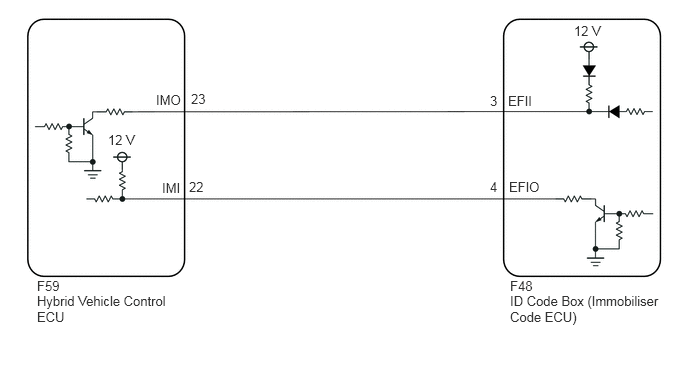

DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [10/2018 - ]: Wiring Diagram

GTY791523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
