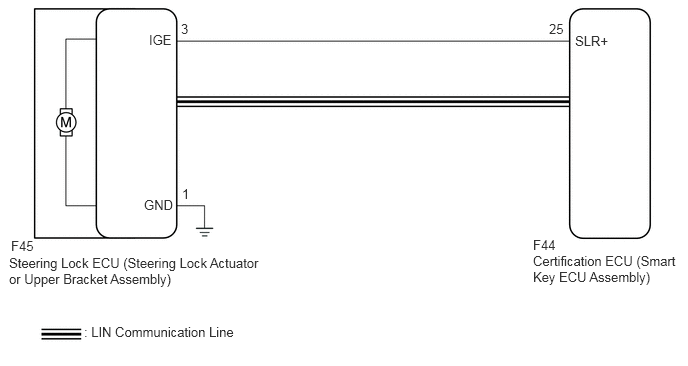

DTC B2782: Power Source Control ECU Malfunction [10/2018 - 07/2022]: Wiring Diagram

GTY801619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
