System Diagram [10/2018 - 08/2021]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, Gasoline Model)

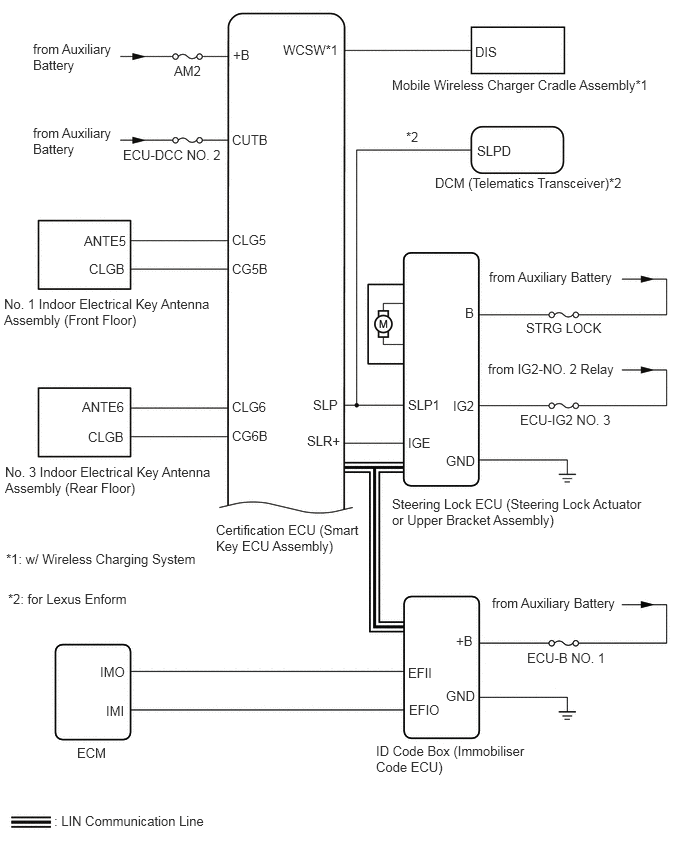

    GTY817793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

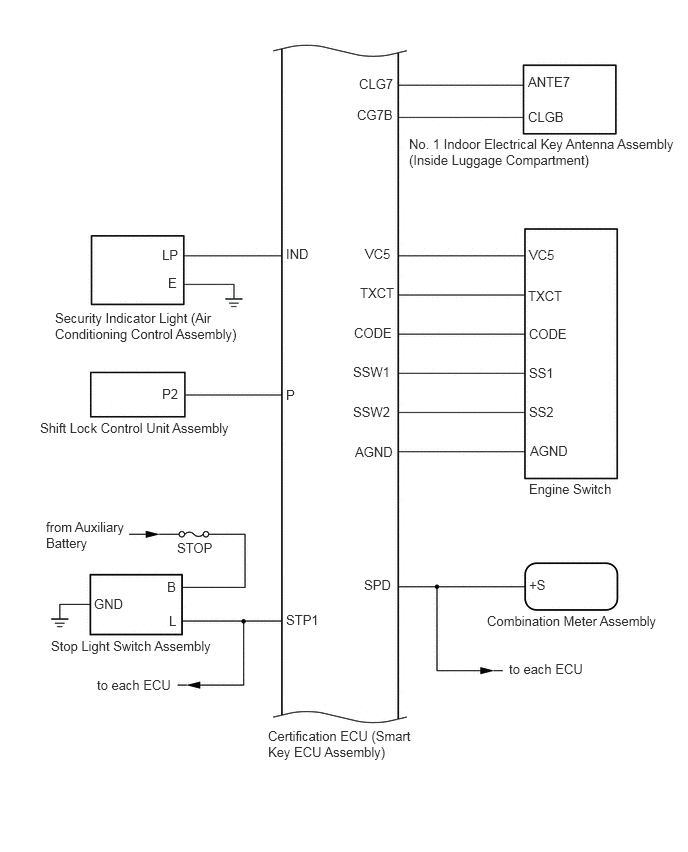

    GTY811559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY805961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY834674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, Gasoline Model)

    Refer to SYSTEM DIAGRAM [10/2018 - 08/2021]
