Removal [07/2022 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU (for Driver Side)

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY (for Front Passenger Side)

    Refer to REMOVAL [10/2018 - ]

  3. REMOVE ACCELERATION SENSOR ASSEMBLY LH (for Driver Side)

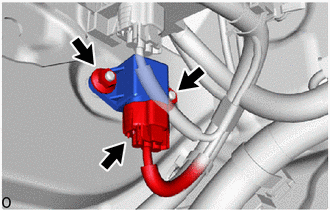

    1. Disconnect the connector.
      GTY1123245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and acceleration sensor assembly LH.
      NOTE:
      • Avoid any impact to the acceleration sensor assembly LH.
      • Do not drop the acceleration sensor assembly LH. If it is dropped, replace it with a new one.
  4. REMOVE ACCELERATION SENSOR ASSEMBLY RH (for Front Passenger Side)

    HINT:

    Perform the same procedure as for the LH side.
