Installation [10/2018 - 07/2022]: Procedure

INSTALL TILT AND TELESCOPIC SWITCH

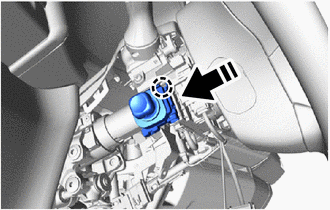

Engage the claw to install the tilt and telescopic switch as shown in the illustration.

GTY813273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Connect the tilt and telescopic connector to the tilt and telescopic switch.
Connect the spiral cable connector to the spiral cable sub-assembly.

INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 3
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for HV Model:
  Refer to INSTALLATION [10/2018 - ]
- for Gasoline Model:
  Refer to PROCEDURE - Step 2
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2018 - 07/2022]
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2018 - ]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
See step 18
