Components [10/2018 - ]

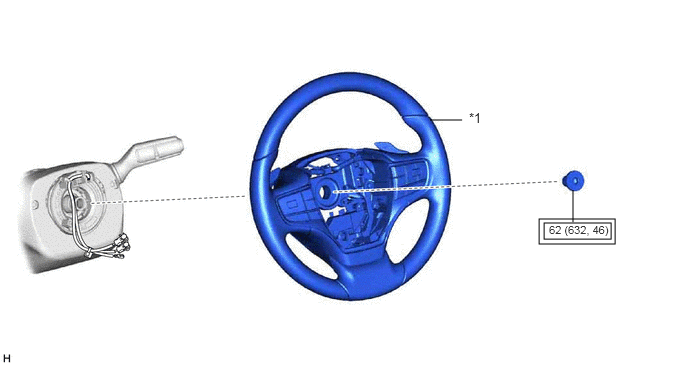

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

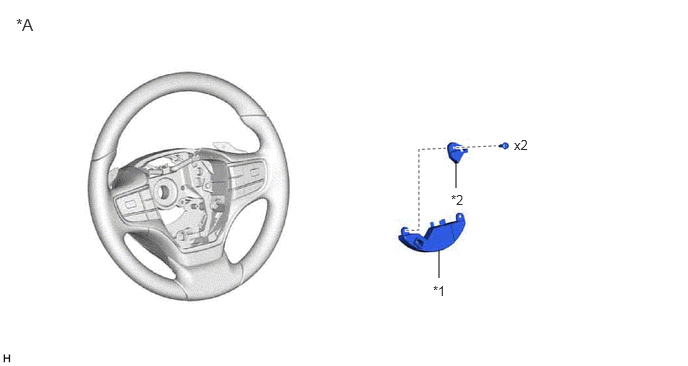

Fig 2: Steering Wheel Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Steering Wheel Vibration	-	-
*1	STEERING VIBRATION ECU	*2	STEERING WHEEL PAD BRACKET LH

Fig 3: Steering Wheel Replacement Components (3 Of 4)

STEERING PAD SWITCH ASSEMBLY

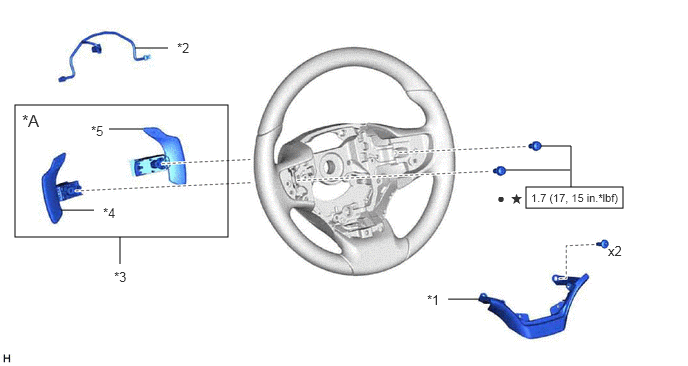

Fig 4: Steering Wheel Replacement Components With Torque Specifications (4 Of 4)

*A	w/ Shift Paddle Switch	-	-
*1	NO. 1 STEERING WHEEL ORNAMENT	*2	NO. 1 SWITCH WIRE
*3	TRANSMISSION SHIFT SWITCH ASSEMBLY	*4	SHIFT PADDLE SWITCH LH
*5	SHIFT PADDLE SWITCH RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
