Components [10/2018 - ]

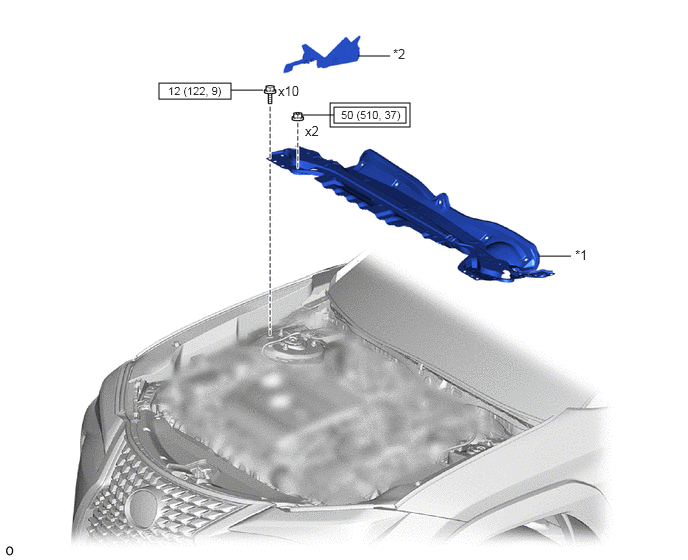

Fig 1: Brake Master Cylinder (HV) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	OUTER COWL TOP PANEL SUB-ASSEMBLY	*2	WATER GUIDE PLATE RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

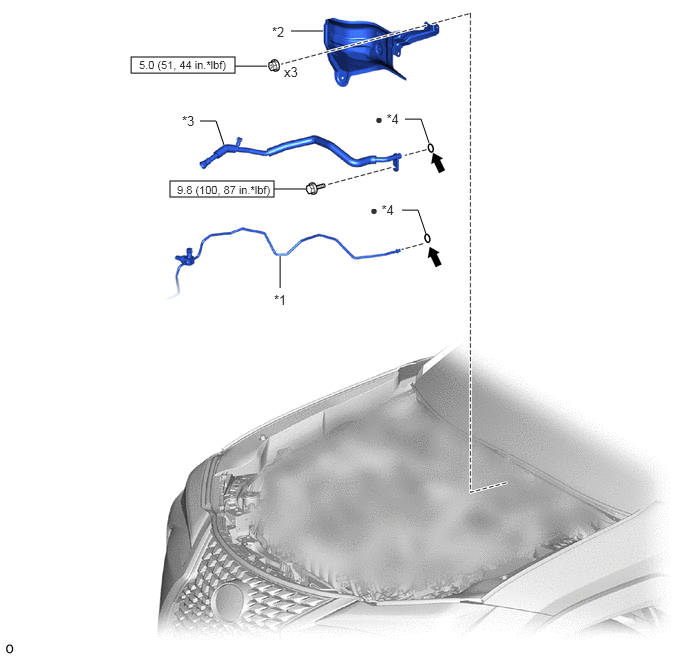

Fig 2: Brake Actuator (HV) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY	*2	DASH PANEL HEAT INSULATOR
*3	SUCTION TUBE SUB-ASSEMBLY B	*4	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

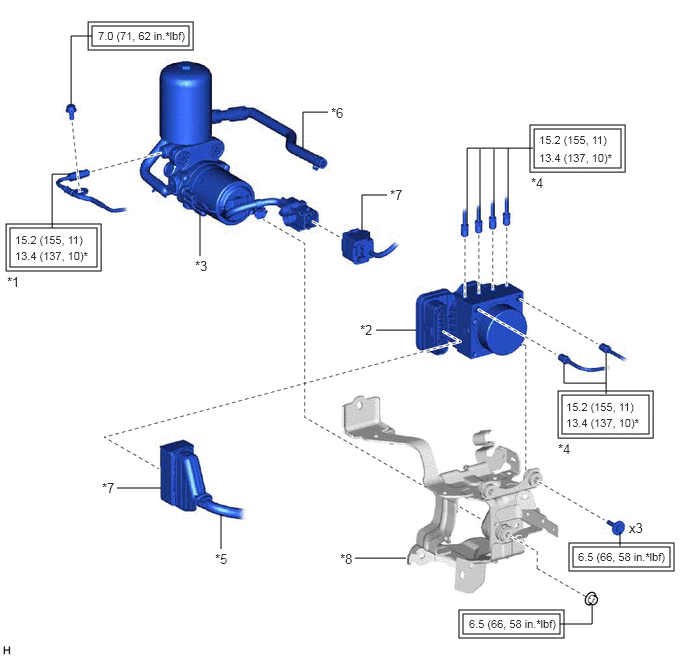

Fig 3: Brake Actuator (HV) Replacement Components With Torque Specifications (3 Of 3)

*1	ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE	*2	BRAKE ACTUATOR ASSEMBLY
*3	BRAKE BOOSTER PUMP ASSEMBLY	*4	BRAKE LINE
*5	ENGINE ROOM MAIN WIRE	*6	NO. 1 BRAKE ACTUATOR HOSE
*7	CONNECTOR	*8	BRAKE ACTUATOR BRACKET ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench
