Components [10/2018 - ]

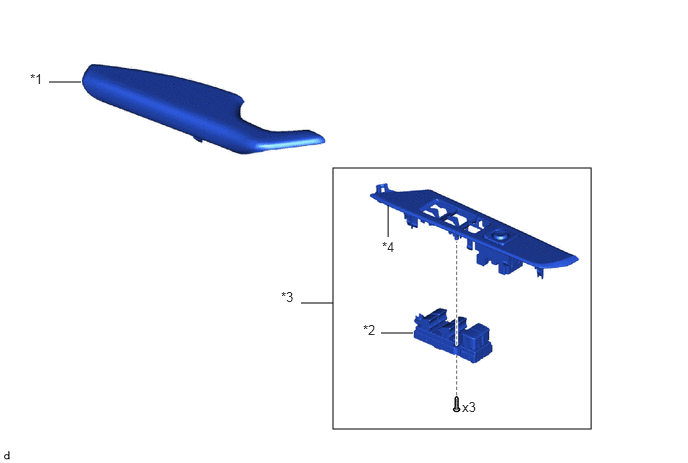

Fig 1: Power Window Master Switch Replacement Components
GTY803012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ARMREST ASSEMBLY LH *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*3 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL *4 FRONT ARMREST BASE PANEL UPPER LH
