Components [10/2018 - ]

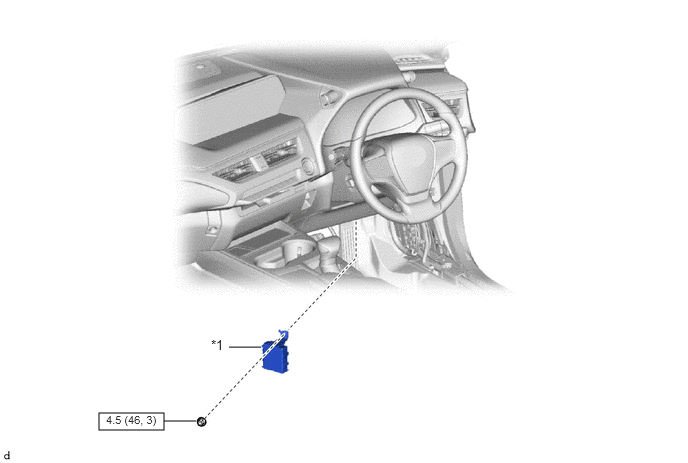

Fig 1: Wiper ECU Replacement Components With Torque Specifications
GTY816962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 WINDSHIELD WIPER RELAY ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
