Components [10/2018 - ]

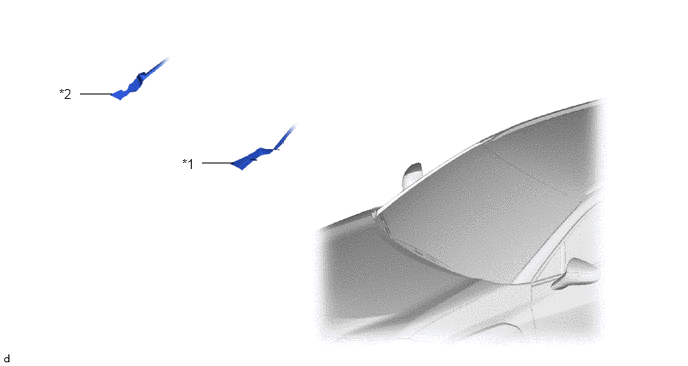

Fig 1: Front Wiper Motor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WINDSHIELD OUTSIDE MOULDING LH

WINDSHIELD OUTSIDE MOULDING RH

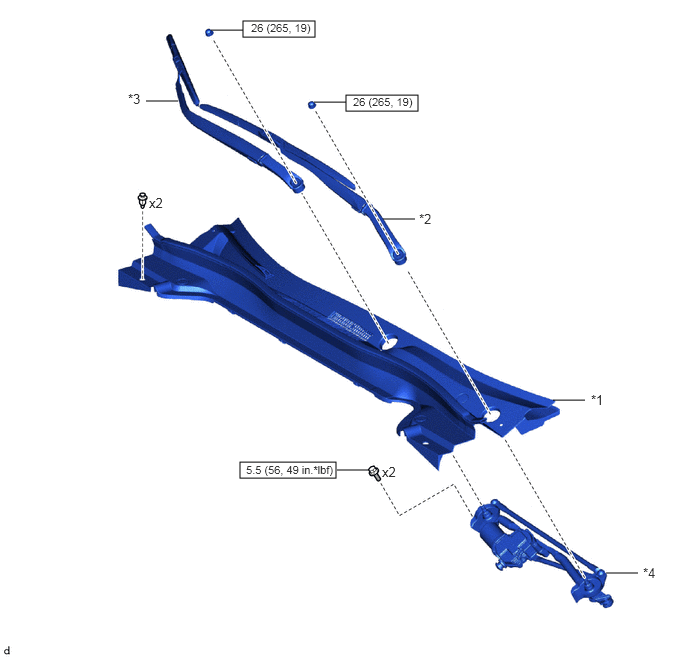

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*3	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*4	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

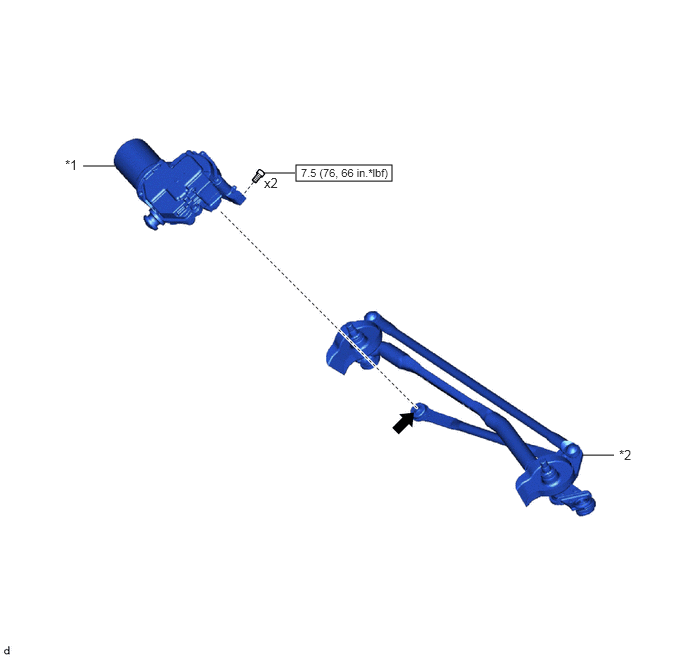

Fig 3: Front Wiper Motor Replacement Components With Torque Specifications (3 Of 3)

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WIPER LINK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
