System Diagram [10/2018 - ]

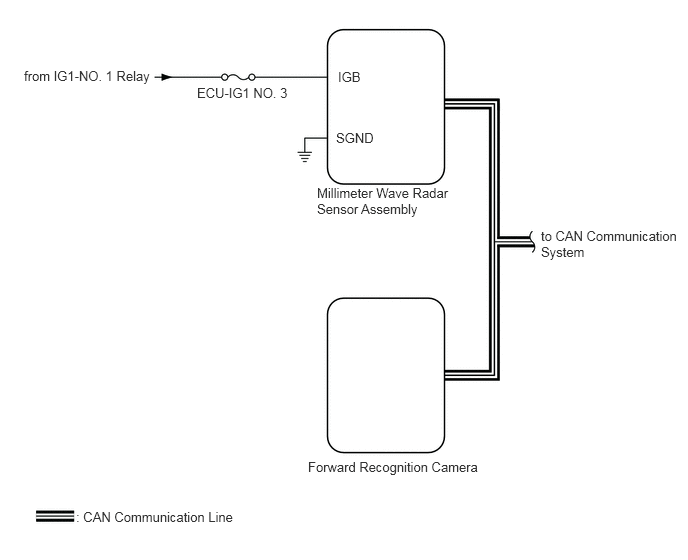

  1. SYSTEM DIAGRAM
    GTY802511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

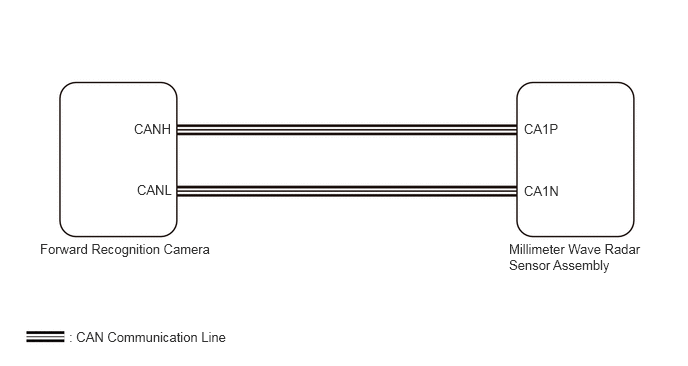

  2. LOCAL CAN CIRCUIT
    GTY829603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
