Components [10/2018 - 07/2022]

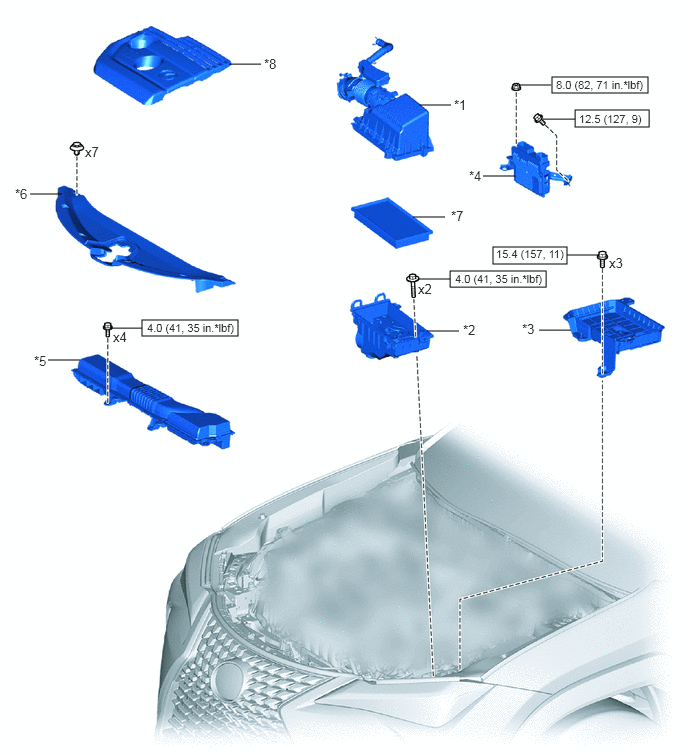

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	BATTERY CLAMP	*4	ECM
*5	NO. 1 AIR CLEANER INLET	*6	RADIATOR SUPPORT OPENING COVER
*7	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*8	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

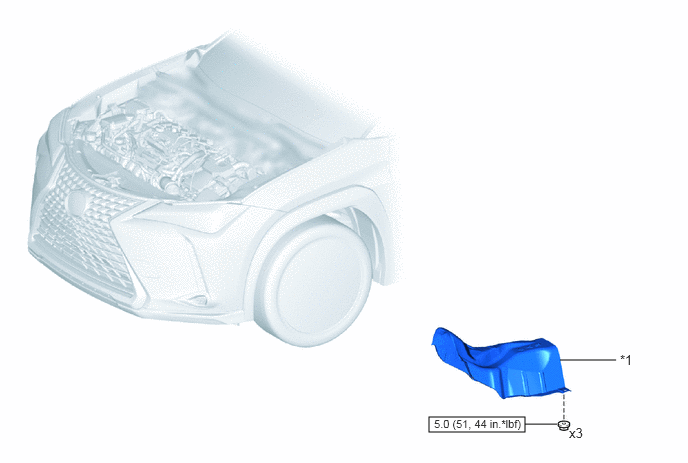

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 1 FLOOR HEAT INSULATOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

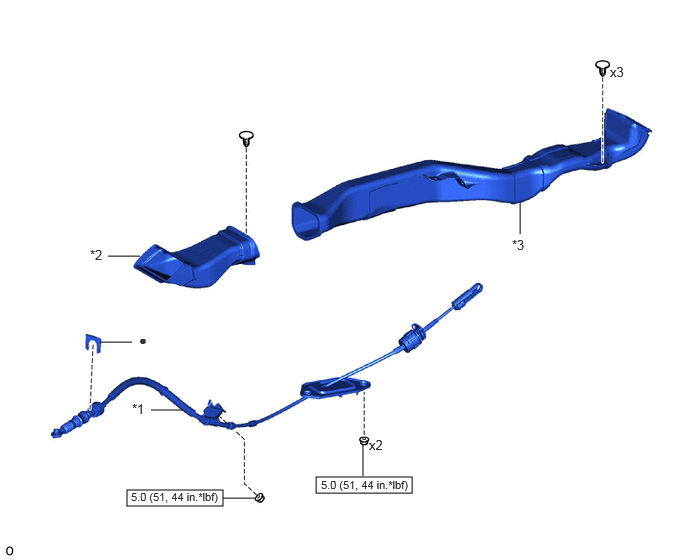

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)

*1	TRANSMISSION CONTROL CABLE ASSEMBLY	*2	NO. 1 CONSOLE BOX DUCT
*3	NO. 2 CONSOLE BOX DUCT	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
