Components [10/2018 - 07/2022]

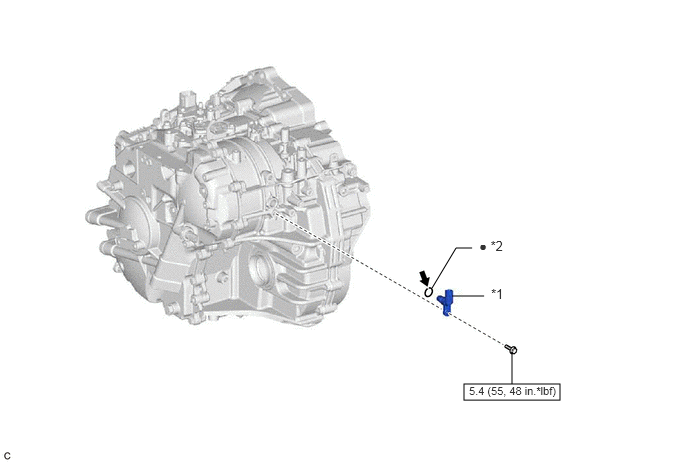

Fig 1: Revolution Sensor (NSS) Replacement Components With Torque Specifications
GTY782179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NSS) *2 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine CVT fluid FE - -
