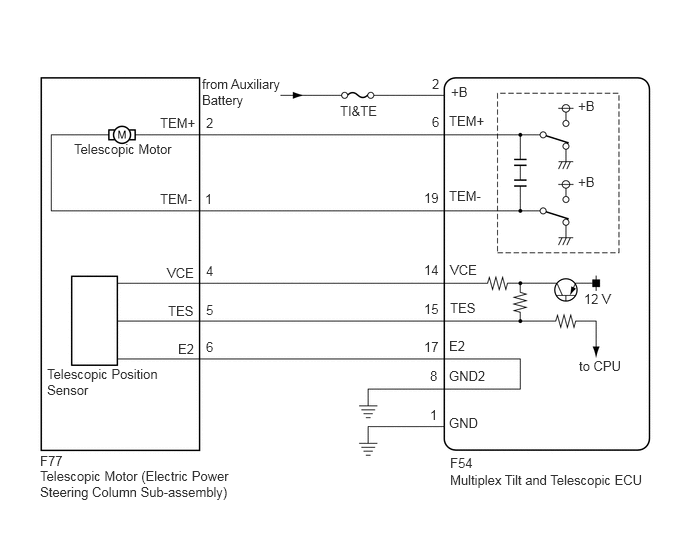

DTC B2611-96: Telescopic Position Sensor or Telescopic Motor Circuit Component Internal Failure [10/2018 - ]: Wiring Diagram

GTY797044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
