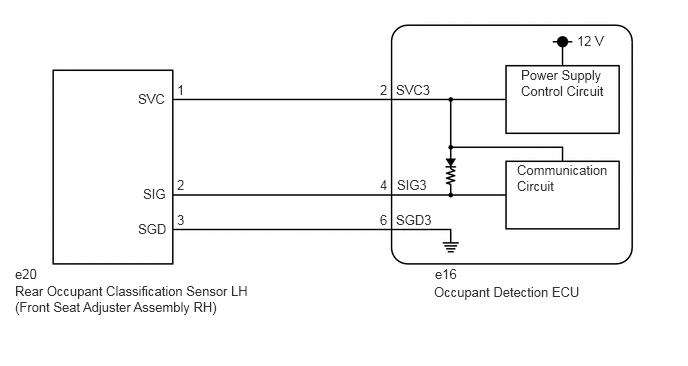

DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [10/2018 - ]: Wiring Diagram

GTY806736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
