Fusible Link Block Assembly (M20A-FXS) - Quarter Panel RH: Notes

For additional information, refer to Figure.

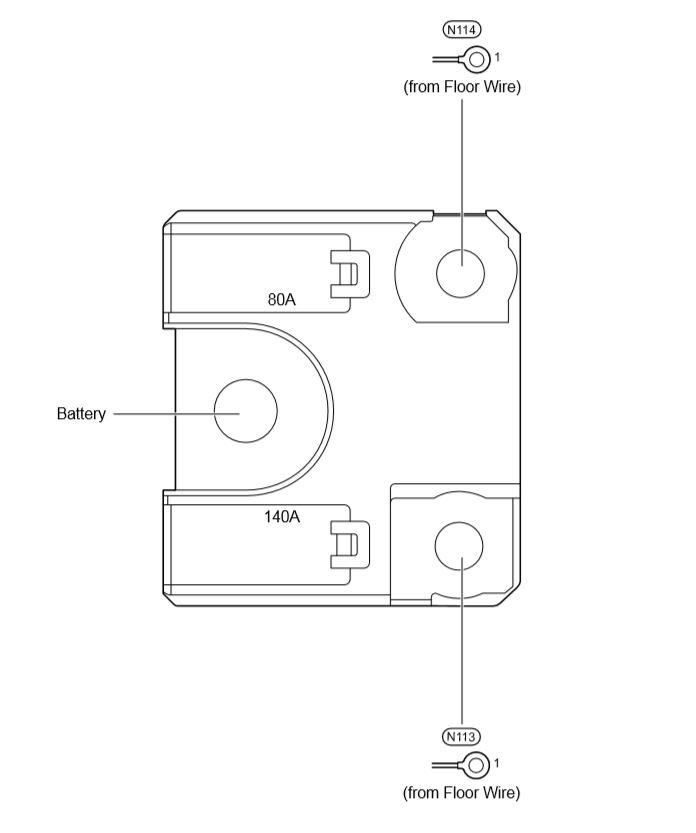

Fig 1: Fusible Link Block (M20A-FXS) Assembly
G00586071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUSIBLE LINK BLOCK ASSEMBLY (M20A-FXS) FUSE IDENTIFICATION

FUSE
80A IGCT IG
140A BATT-MAIN
