Fusible Link Block Assembly (M20A-FKS) Inner Circuit

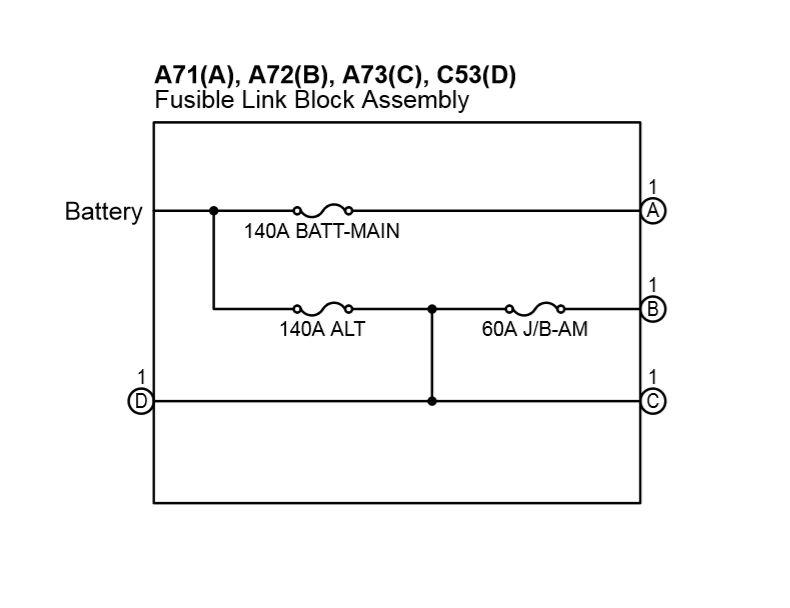

Fig 1: Fusible Link Block Assembly (M20A-FKS) Circuit Diagram

G00586063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
