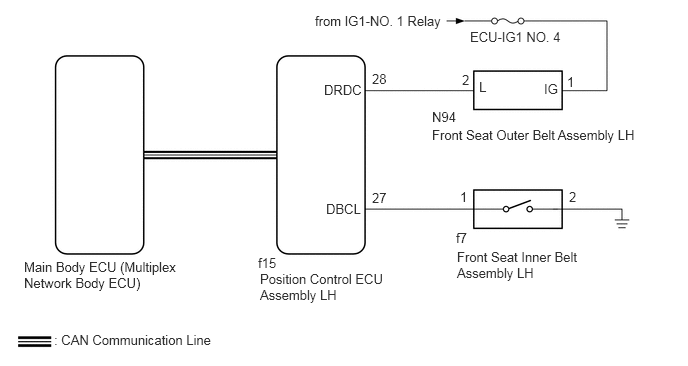

Power Seat Power Easy Access System Function does not Operate [10/2018 - 07/2022]: Wiring Diagram

GTY804995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
