Installation [10/2018 - ]: Procedure

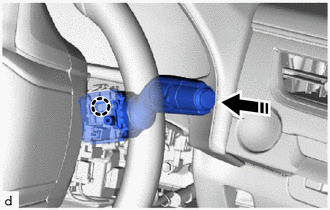

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL UPPER STEERING COLUMN COVER

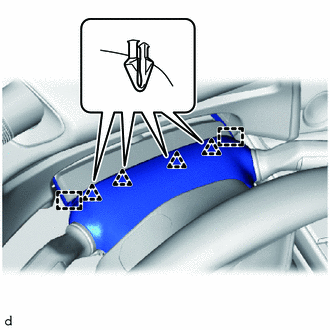

Engage the guide and clips to connect the upper steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

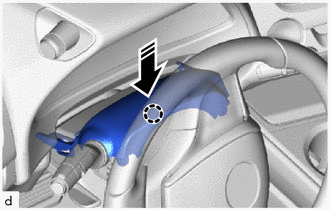

Engage the claw to install the upper steering column cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL LOWER STEERING COLUMN COVER

NOTE:

If the lower steering column cover is installed in the incorrect order, the parts may break.

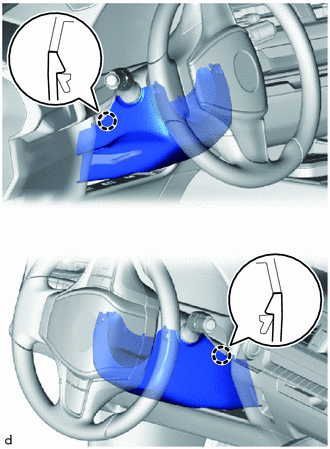

Install the lower steering column cover as shown in the illustration.

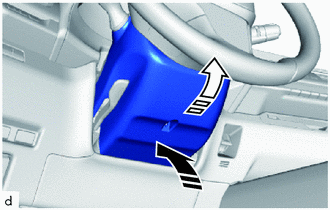

	Install in this Direction (1)
	Install in this Direction (2)

Engage the claws.

Install the screw.
Turn the steering wheel assembly to the left and install the screw.
Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.
