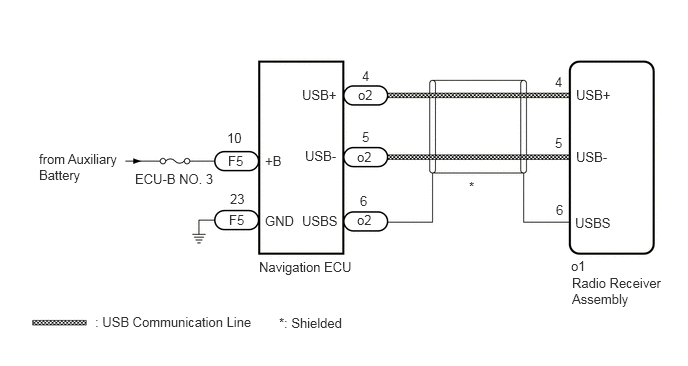

DTC B1543: Extension Module Disconnected 2 [10/2018 - 10/2019]: Wiring Diagram

GTY799362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
