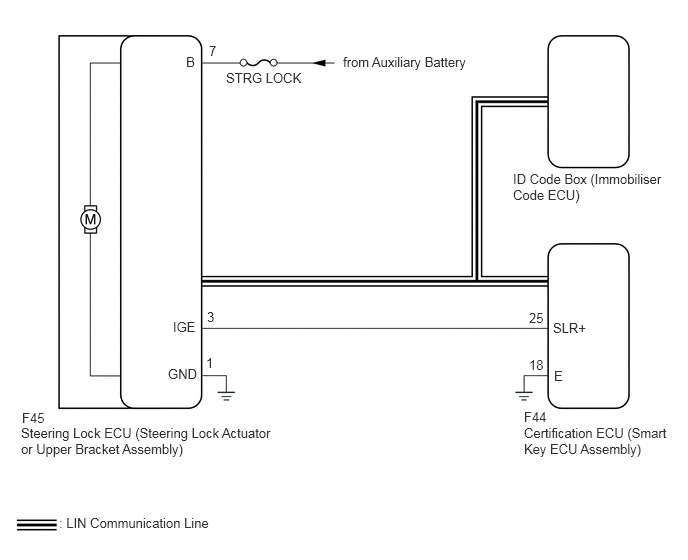

Steering Lock does not Lock [10/2018 - 07/2022]: Wiring Diagram

GTY817438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
