DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit [10/2018 - 07/2022]: Procedure

1. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 1 indoor electrical key antenna assembly (inside luggage compartment).

   OK

   Connectors are properly connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  2

1. Disconnect the N61 certification ECU (smart key ECU assembly) connector.
2. Disconnect the N32 No. 1 indoor electrical key antenna assembly (inside luggage compartment) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N61-11 (CLG7) - N32-1 (ANTE7)	Always	Below 1 Ω
   N61-10 (CG7B) - N32-3 (CLGB)	Always	Below 1 Ω

4. Reconnect the N61 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

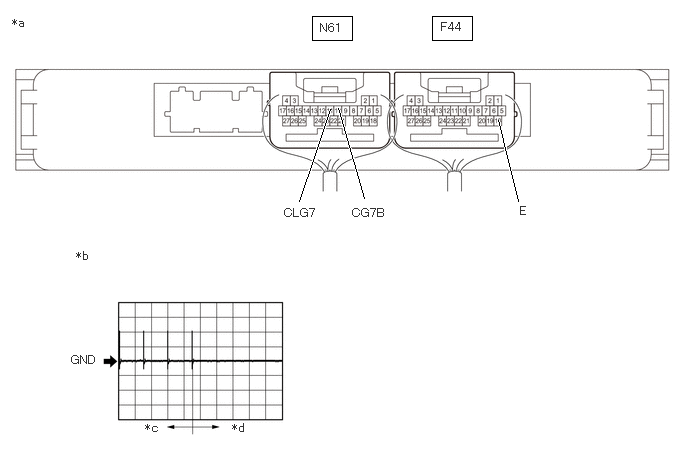

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   N61-11 (CLG7) - F44-18 (E)	Procedure: Door is closed Engine switch off Electrical key transmitter sub-assembly not inside vehicle Driver door lock sensor touched	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)
   N61-10 (CG7B) - F44-18 (E)	Procedure: Door is closed Engine switch off Electrical key transmitter sub-assembly not inside vehicle Driver door lock sensor touched	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT). Refer to  REMOVAL [10/2018 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [10/2018 - 07/2022]
