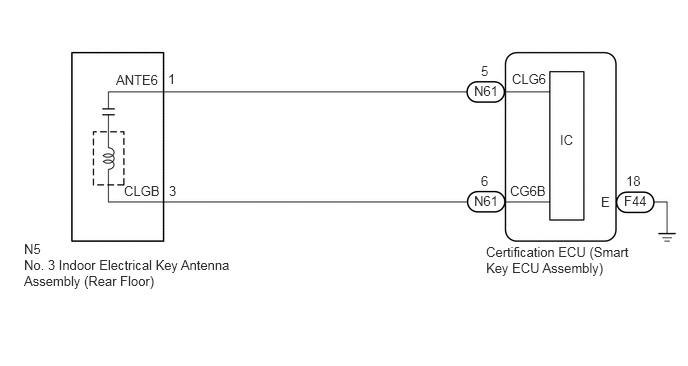

DTC B27A6: Open in Rear Floor Electrical Key Oscillator Circuit [10/2018 - 08/2021]: Wiring Diagram

GTY823204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
