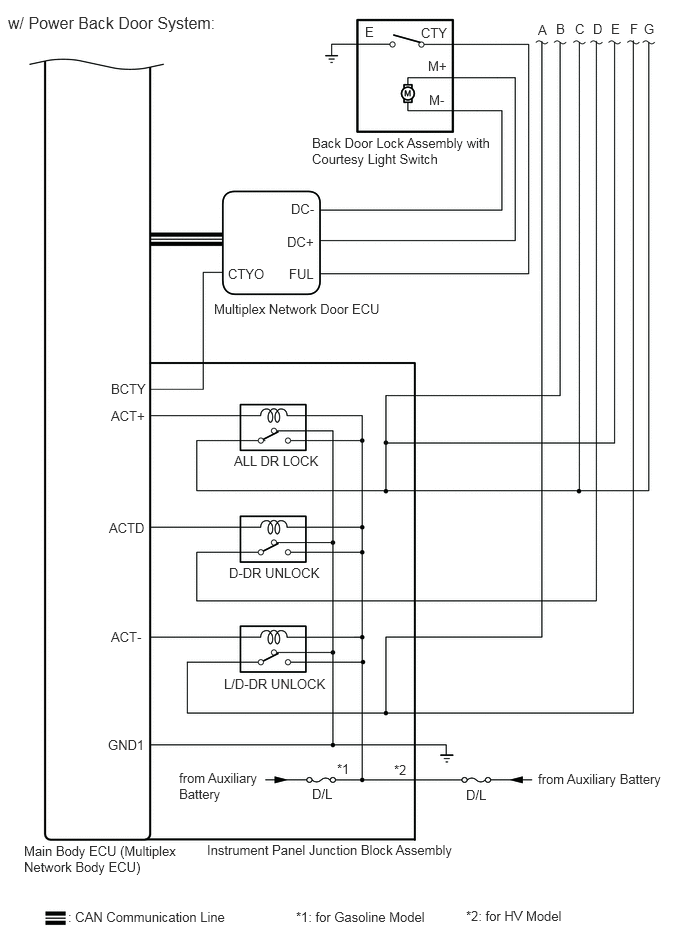

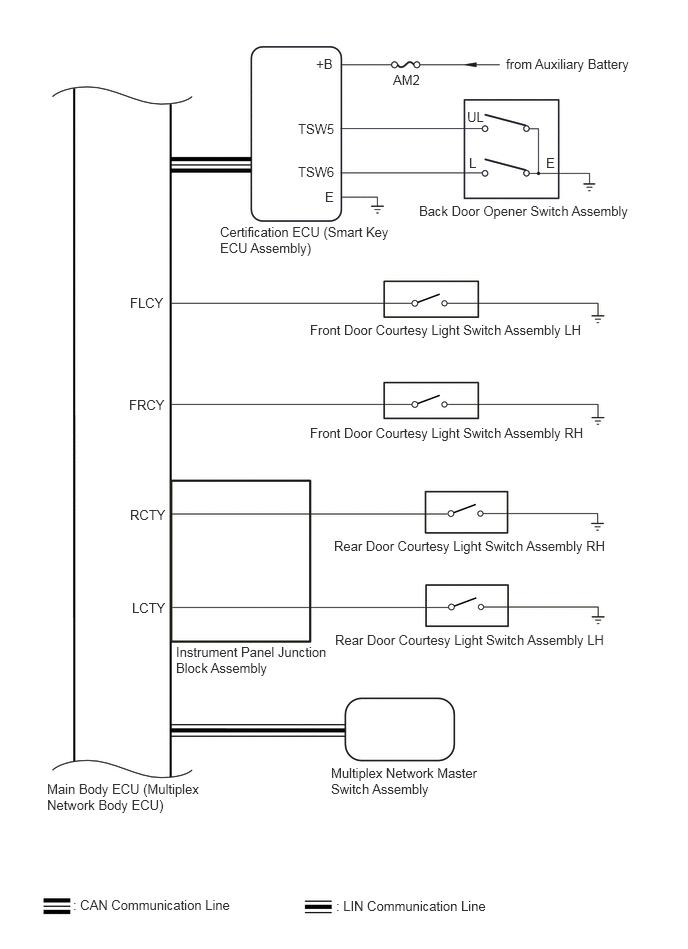

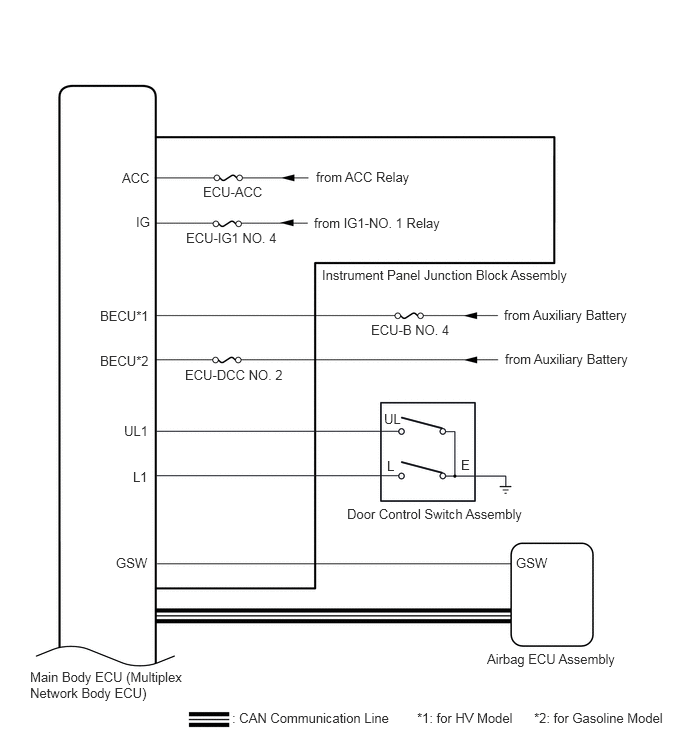

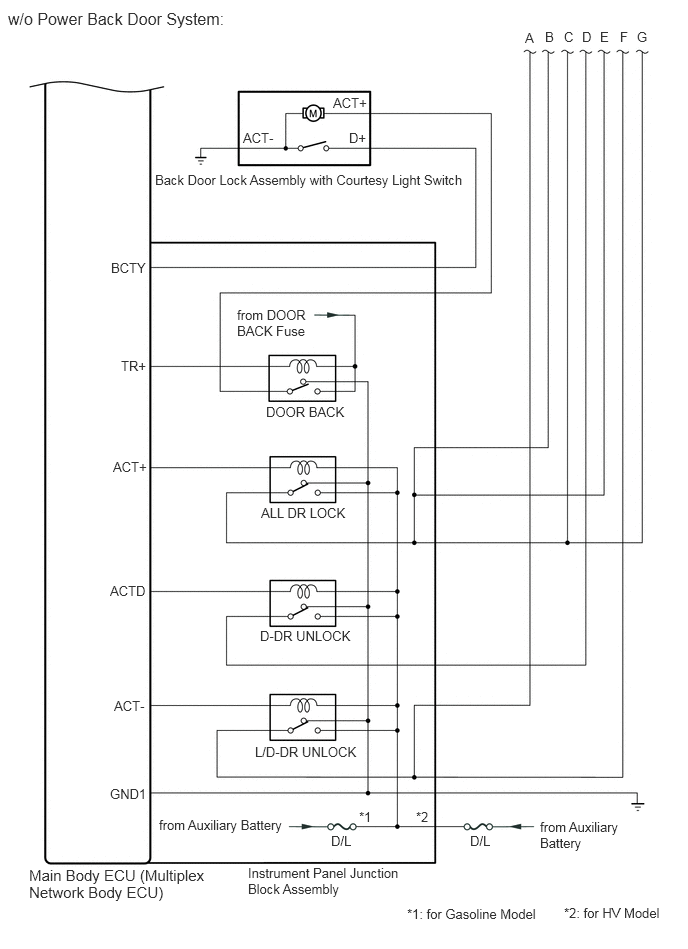

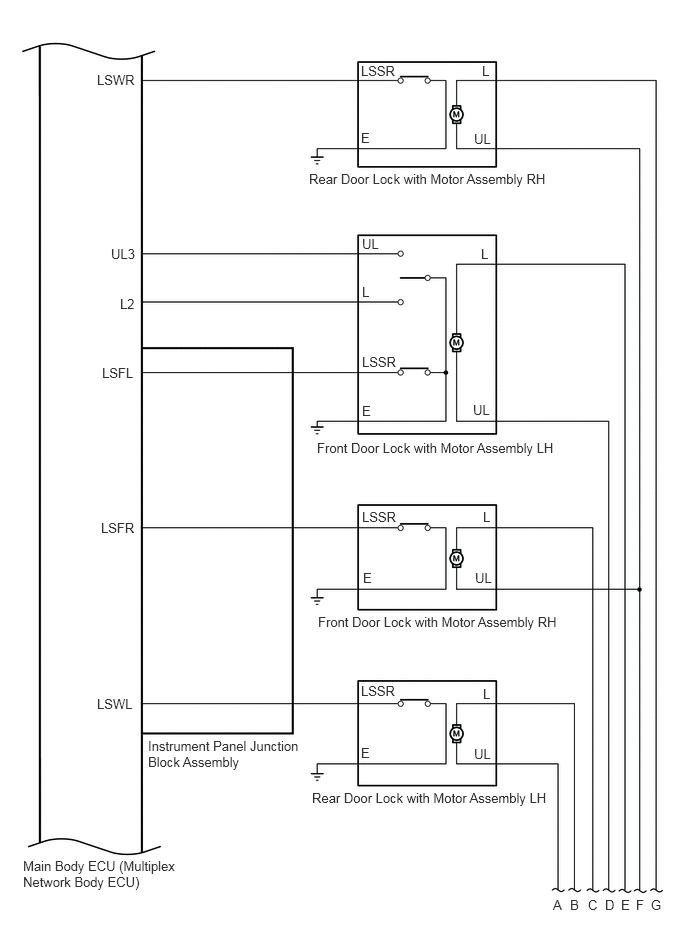

Home >> Lexus >> 2021 >> UX 200 Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Power Door Lock Control System (Diagnostics - Introduction) >> Power Door Lock Control System >> System Diagram [10/2018 - 07/2022] >> System Diagram [10/2018 - 07/2022]
