Removal [08/2016 - 08/2019]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [08/2016 - 03/2018] , or refer to REMOVAL [03/2018 - 08/2019]

  3. REMOVE STEERING WHEEL ASSEMBLY
    1. Disconnect each connector from the spiral cable with sensor sub-assembly.
    2. Remove the steering wheel assembly set nut.
      GTY650860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    3. Put matchmarks on the steering wheel assembly and steering main shaft.

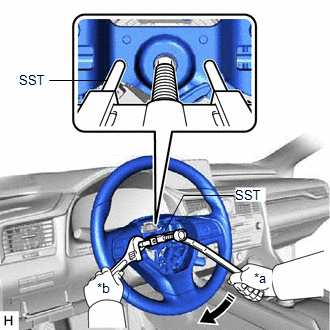

    4. Using SST, remove the steering wheel assembly.
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05020
        4. 09954-05070
      NOTE:

      Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

      GTY663959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
  4. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2 [08/2016 - 08/2019]

  5. REMOVE STEERING PAD SWITCH ASSEMBLY

    See step  2

  6. REMOVE LOWER NO. 1 STEERING WHEEL BOSS COVER (w/ Shift Paddle Switch)

    Refer to PROCEDURE - Step 4 [08/2016 - 08/2019]

  7. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)

    Refer to PROCEDURE - Step 5 [08/2016 - 08/2019]

  8. REMOVE NO. 1 SWITCH WIRE (w/ Shift Paddle Switch)

    Refer to PROCEDURE - Step 6 [08/2016 - 08/2019]

  9. REMOVE STEERING VIBRATION AND HEATER ECU

    See step  6
