Components [10/2015 - 08/2016]

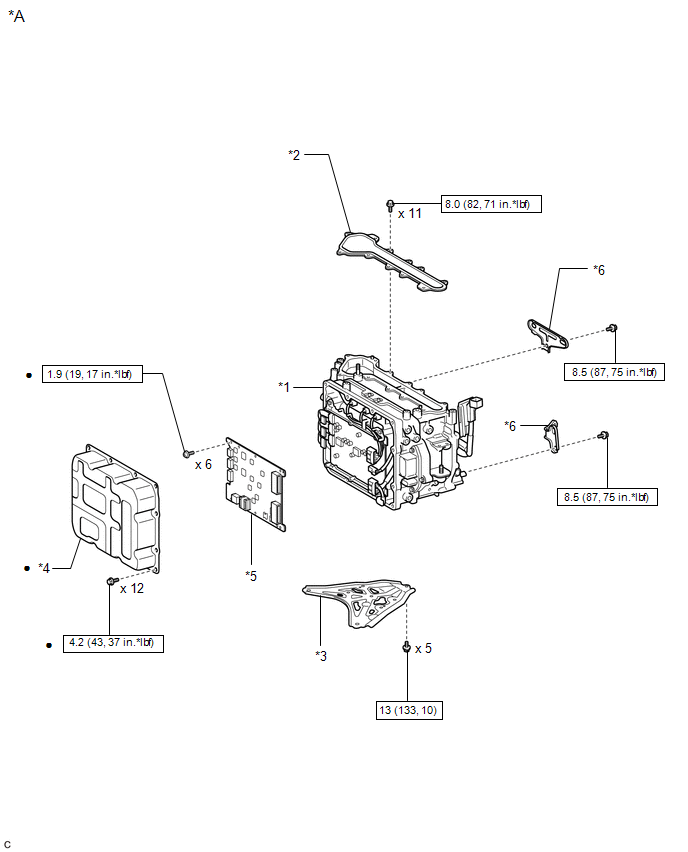

Fig 1: Motor Generator Control Computer Replacement Components With Torque Specifications (1 Of 2) [10/2015 - 08/2016]
| Callout | Description | Callout | Description |
| *A | for 2WD | - | - |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | INVERTER TERMINAL COVER |
| *3 | NO. 1 INVERTER BRACKET | *4 | CONVERTER COVER |
| *5 | MOTOR GENERATOR CONTROL COMPUTER | *6 | WIRE HARNESS CLAMP BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

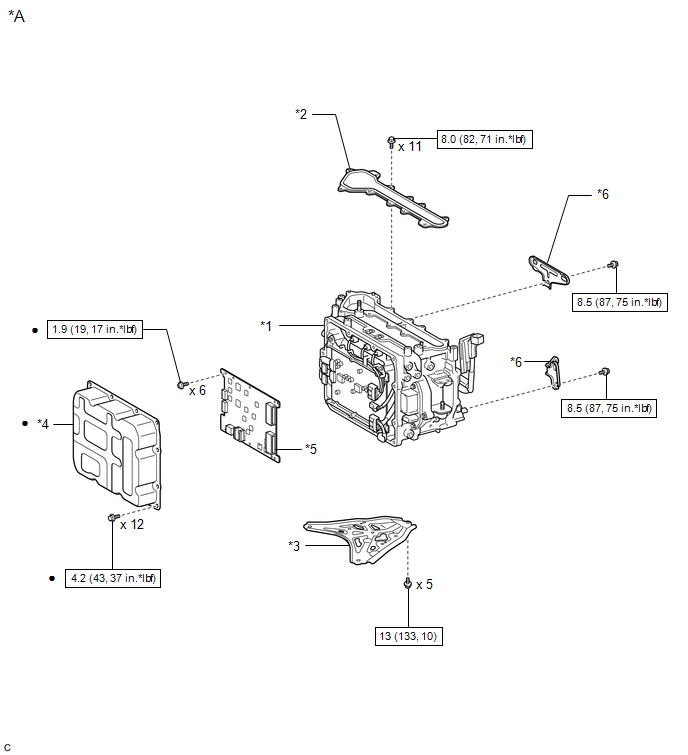

Fig 2: Motor Generator Control Computer Replacement Components With Torque Specifications (2 Of 2) [10/2015 - 08/2016]
| Callout | Description | Callout | Description |
| *A | for AWD | - | - |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | INVERTER TERMINAL COVER |
| *3 | NO. 1 INVERTER BRACKET | *4 | CONVERTER COVER |
| *5 | MOTOR GENERATOR CONTROL COMPUTER | *6 | WIRE HARNESS CLAMP BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
