Installation [10/2015 - 03/2018]: Procedure

INSTALL INJECTOR DRIVER

NOTE:

Be careful not to drop or strike the injector driver.

Temporarily install the injector driver to the intake manifold and cylinder head cover sub-assembly LH with the 4 bolts.
Tighten the 4 bolts in the order shown in the illustration.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

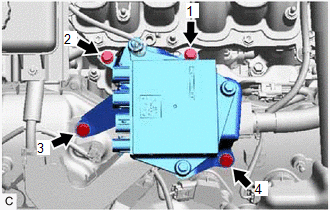

Fig 1: Injector Driver Bolts Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

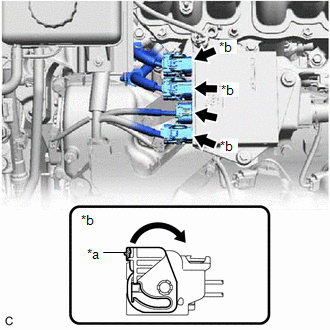

Connect the injector driver connector.

*a	Lock Lever
*b	Injector Driver Connector (with Lock)

Connect the 3 injector driver connectors (with lock) and move the lock lever to engage the lock of each injector driver connector (with lock) as shown in the illustration.
NOTE:
Securely connect the injector driver connectors (with lock) and engage the lock.

INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 87
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 03/2018]
INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 54 , or refer to PROCEDURE - Step 53
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 56 , or refer to PROCEDURE - Step 55
