Installation [10/2015 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Engage the claw as shown in the illustration to install the windshield wiper switch assembly.

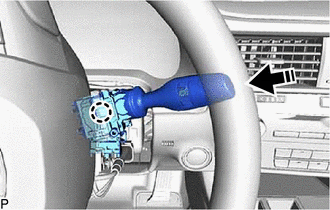

      GTY664813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the 2 connectors.
  2. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the claw to install the upper steering column cover as shown in the illustration.

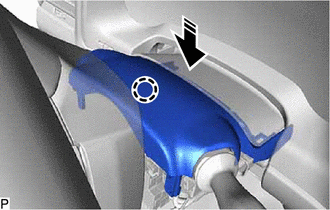

      GTY639611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 4 clips and 2 claws to connect the instrument cluster finish panel sub-assembly.
  3. INSTALL LOWER STEERING COLUMN COVER
    NOTE:

    If the lower steering column cover is installed in the incorrect order, the parts may break.

    1. Engage the 2 claws as shown in the illustration.

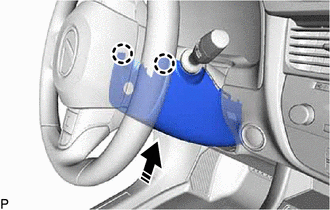

      GTY652756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the claw.

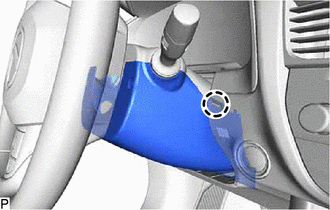

      GTY655292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the claw.

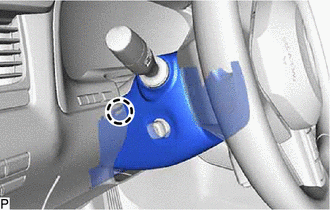

      GTY655294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the screw.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

    5. Turn the steering wheel assembly to the left and install the screw.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

    6. Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 23 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 22 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 22 [08/2019 - ]
