System Diagram [08/2019 - ]

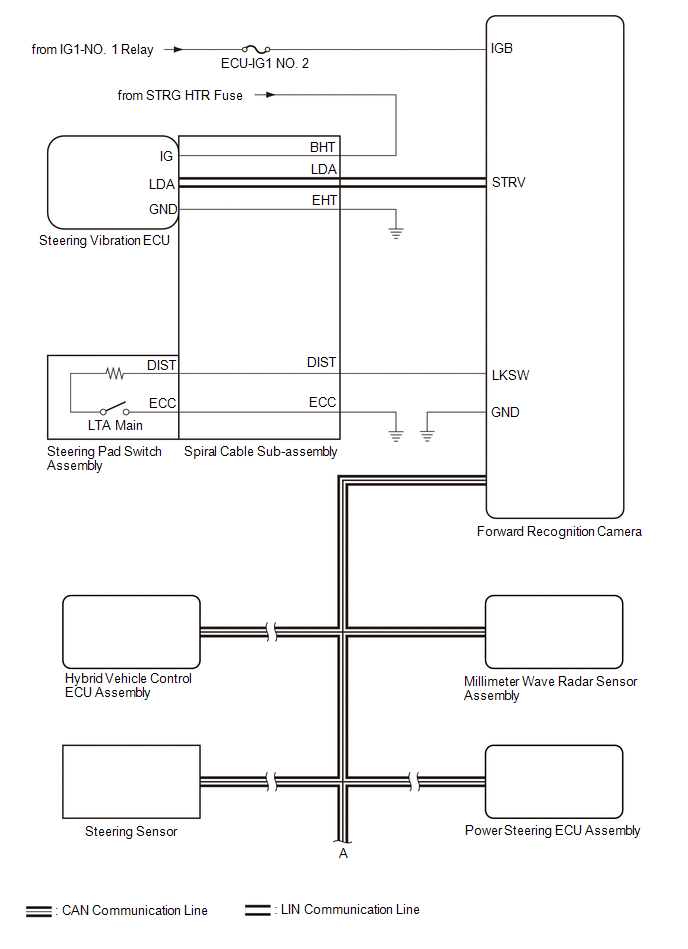

Fig 1: Lane Control System Wiring Diagram (1 Of 3)
GTY947421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lane Control System Wiring Diagram (2 Of 3)
GTY948185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    Fig 3: Lane Control System Wiring Diagram (3 Of 3)
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
